POLARIS

Gaskets. Seamless. 60%. $265 Shipped.

Offering a quality typing experience without the high price tag, Polaris redefines the expectations from custom keyboards.
With proper gasket plate mounting, flex-slotted 1.2mm thin PCB, sleek seamless aesthetic, and accessible pricing, experience a top-tier 60% keyboard for a mid-range price.

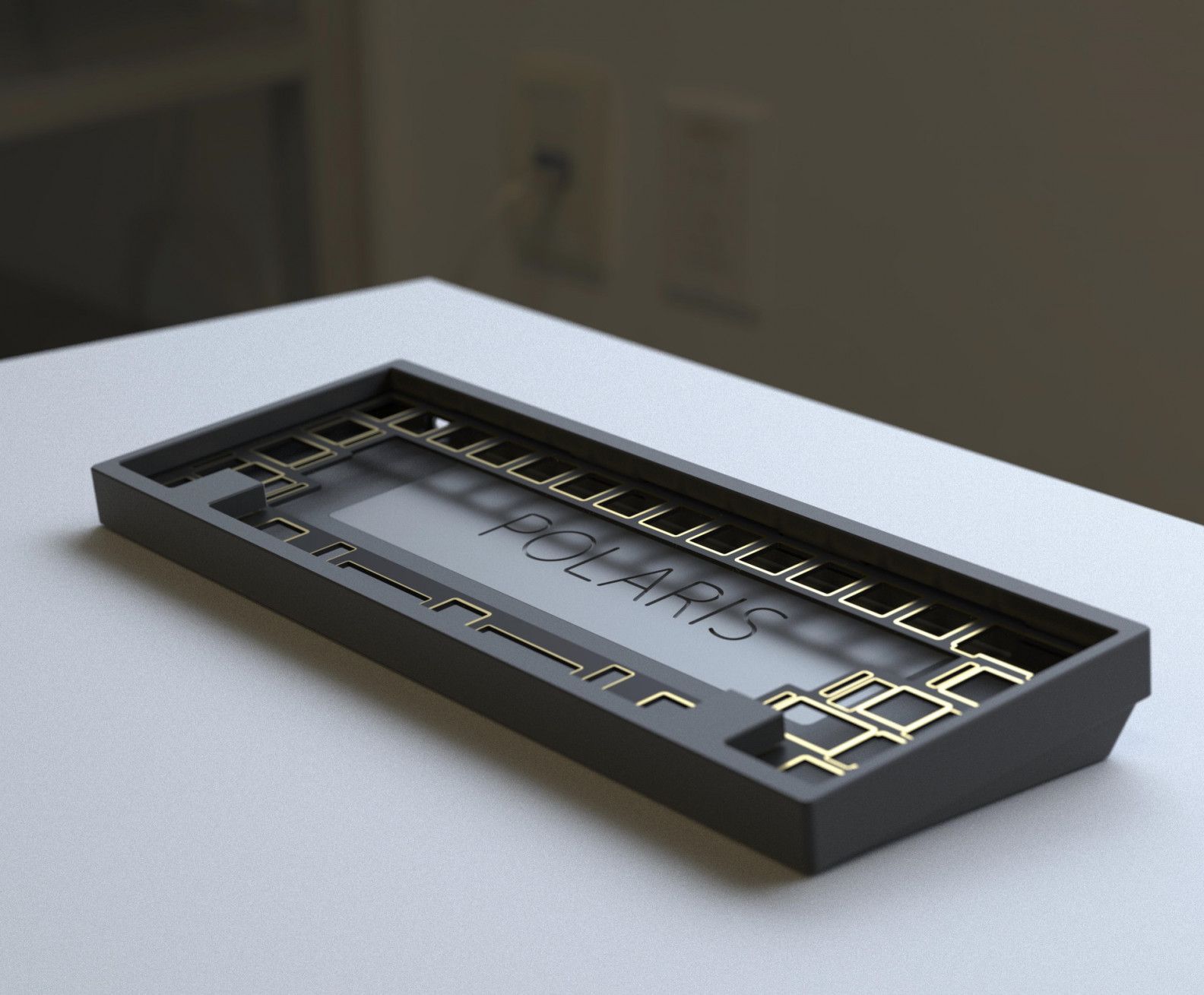

Polaris render front

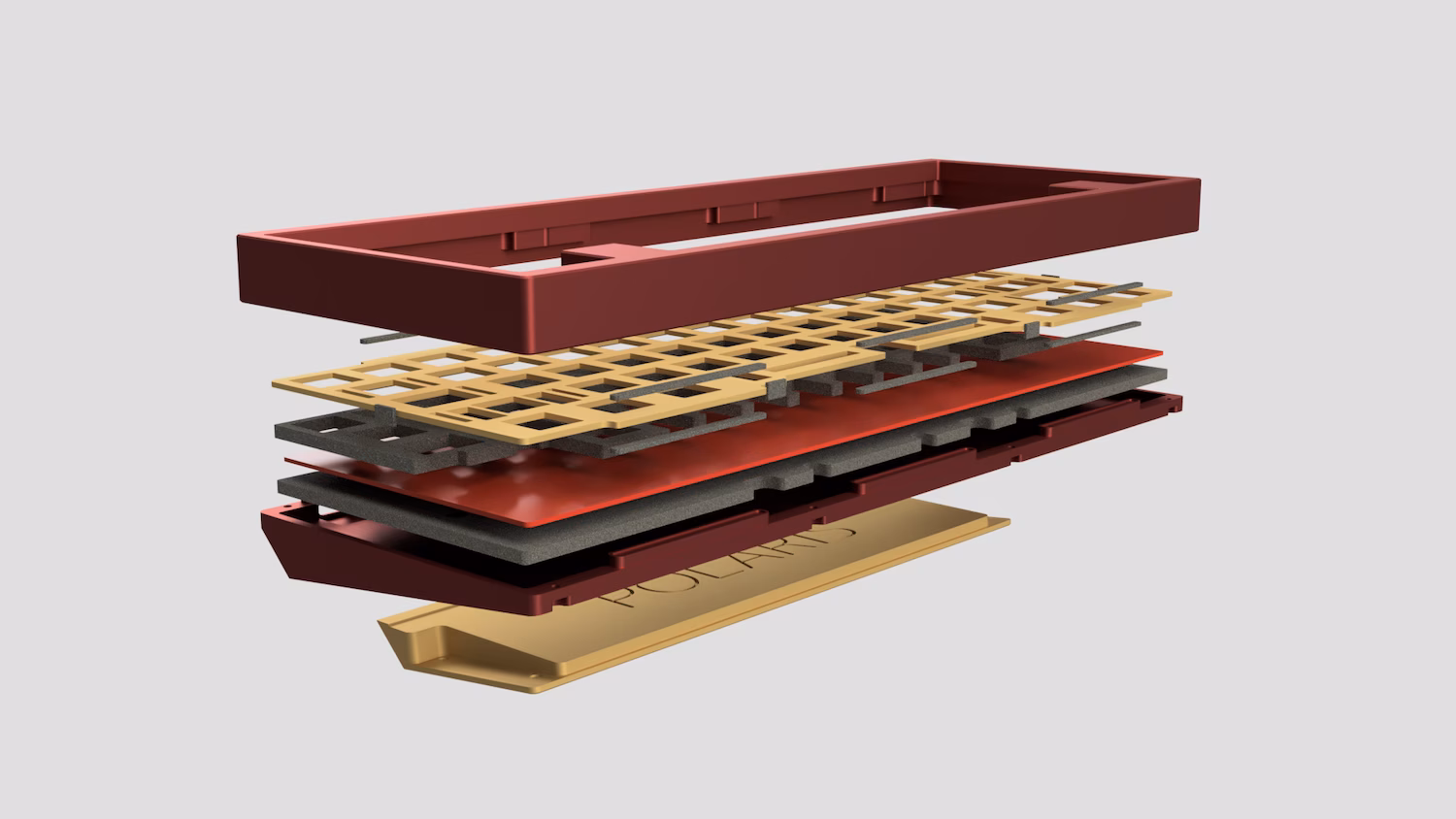

Polaris render exploded rear

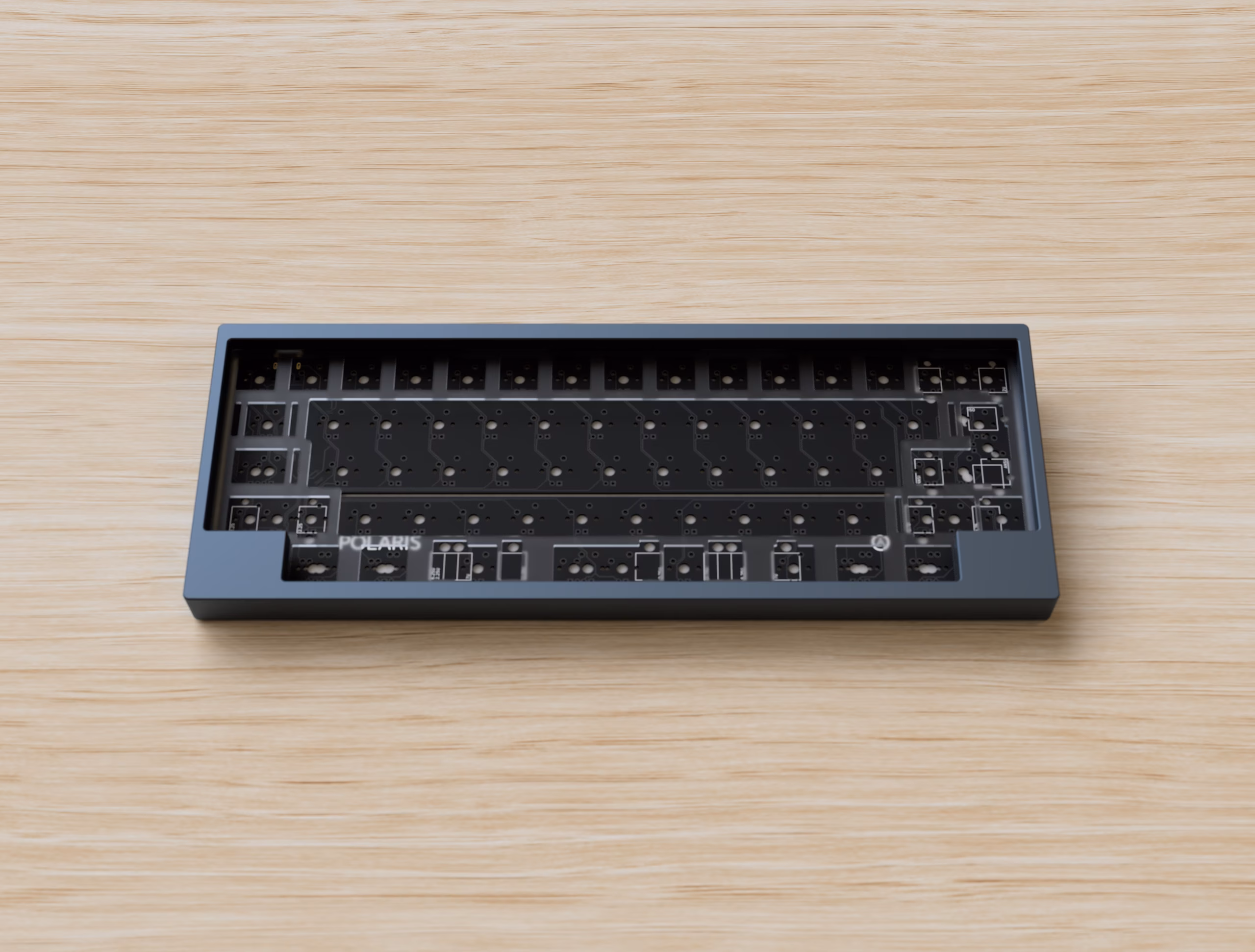

Polaris render grey

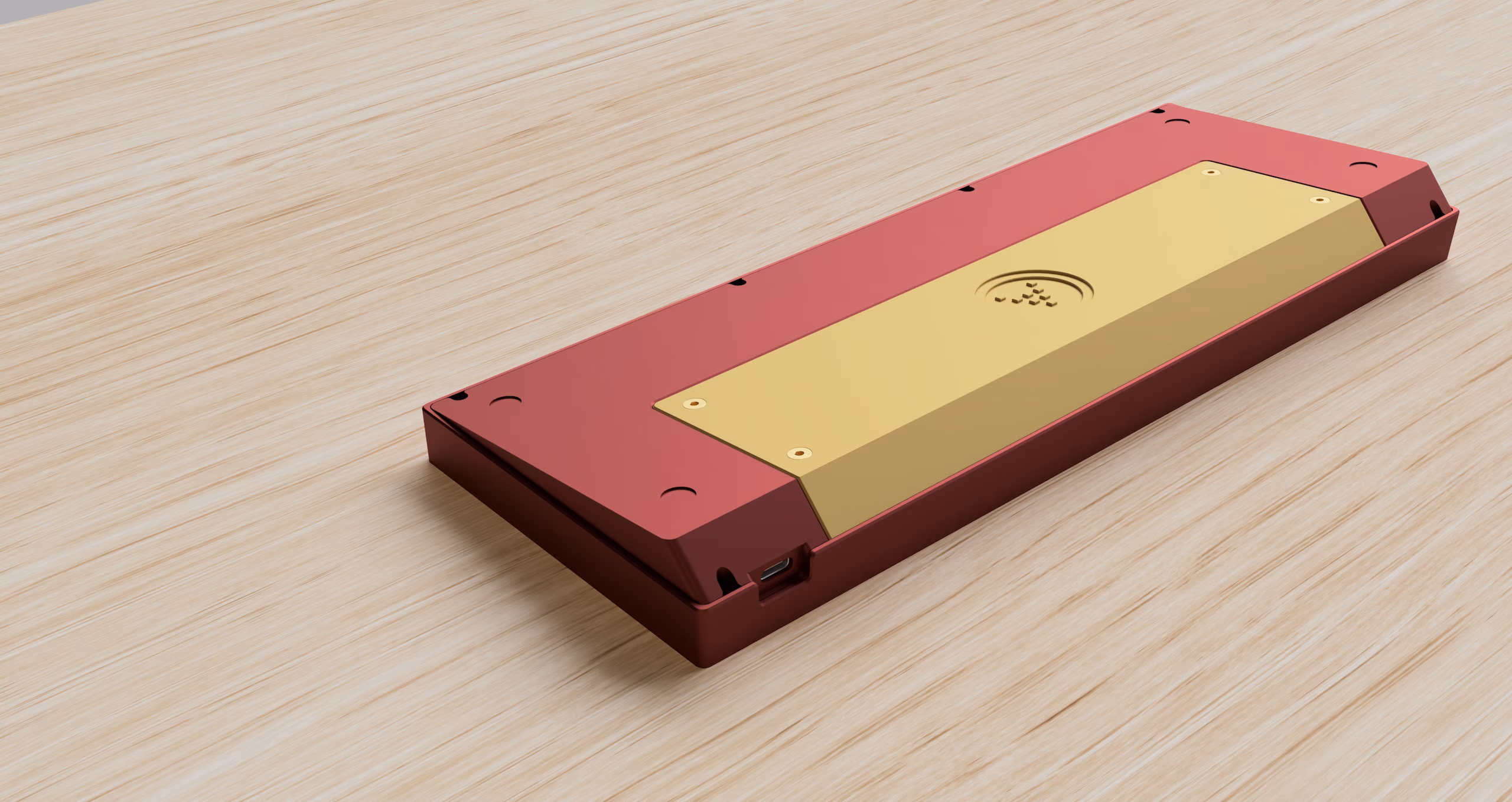

Polaris render bottom

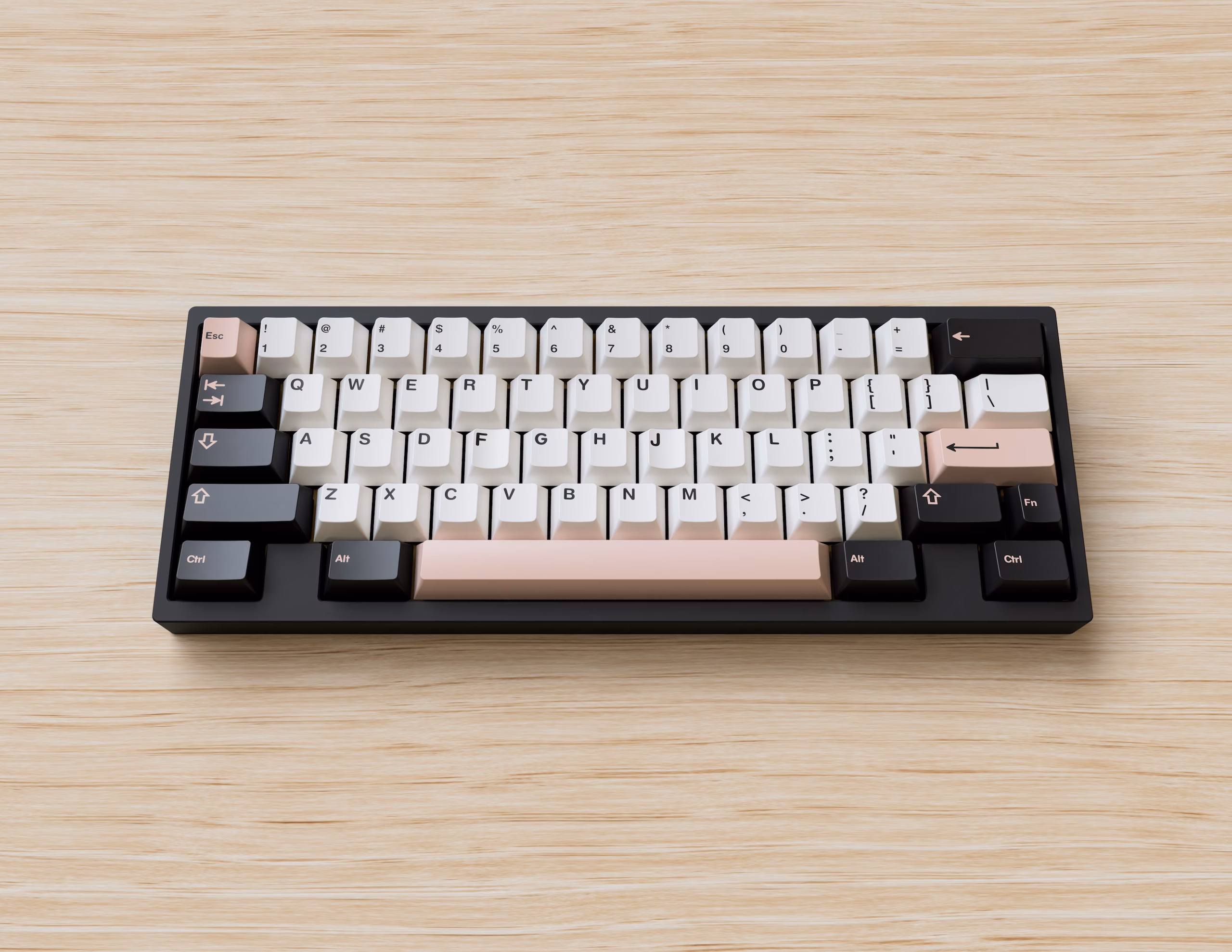

Polaris render black with keyset

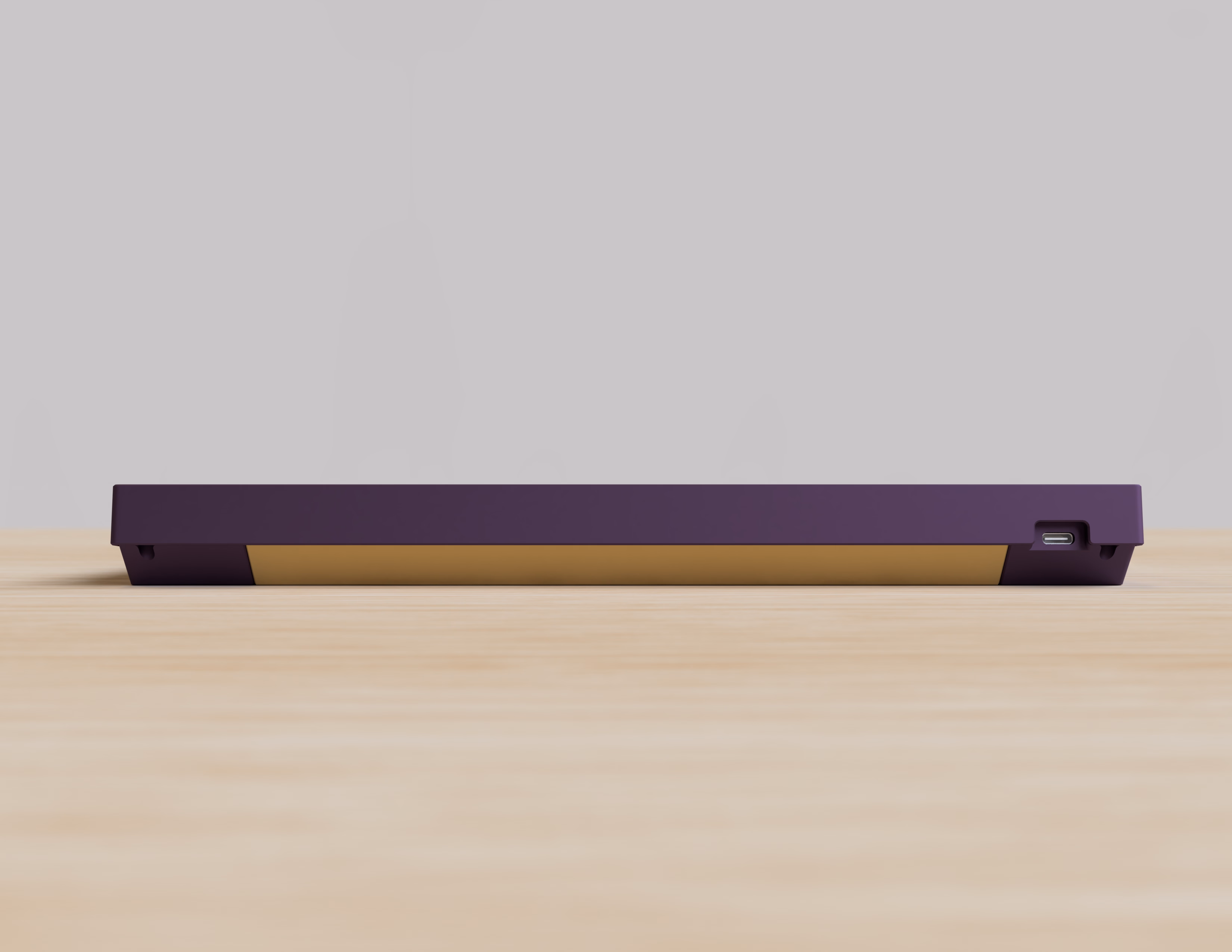

Polaris render rear purple

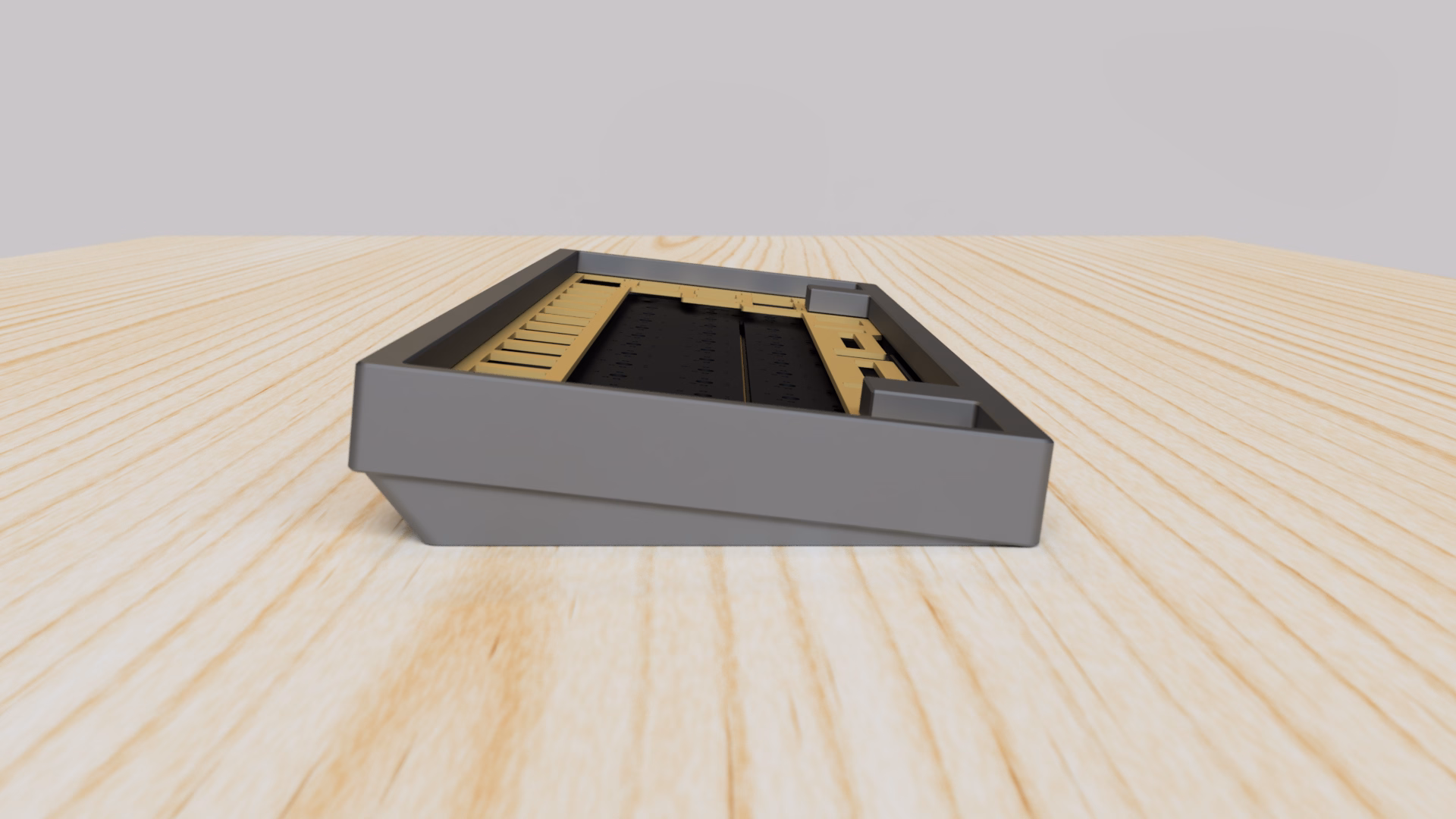

Polaris render side grey

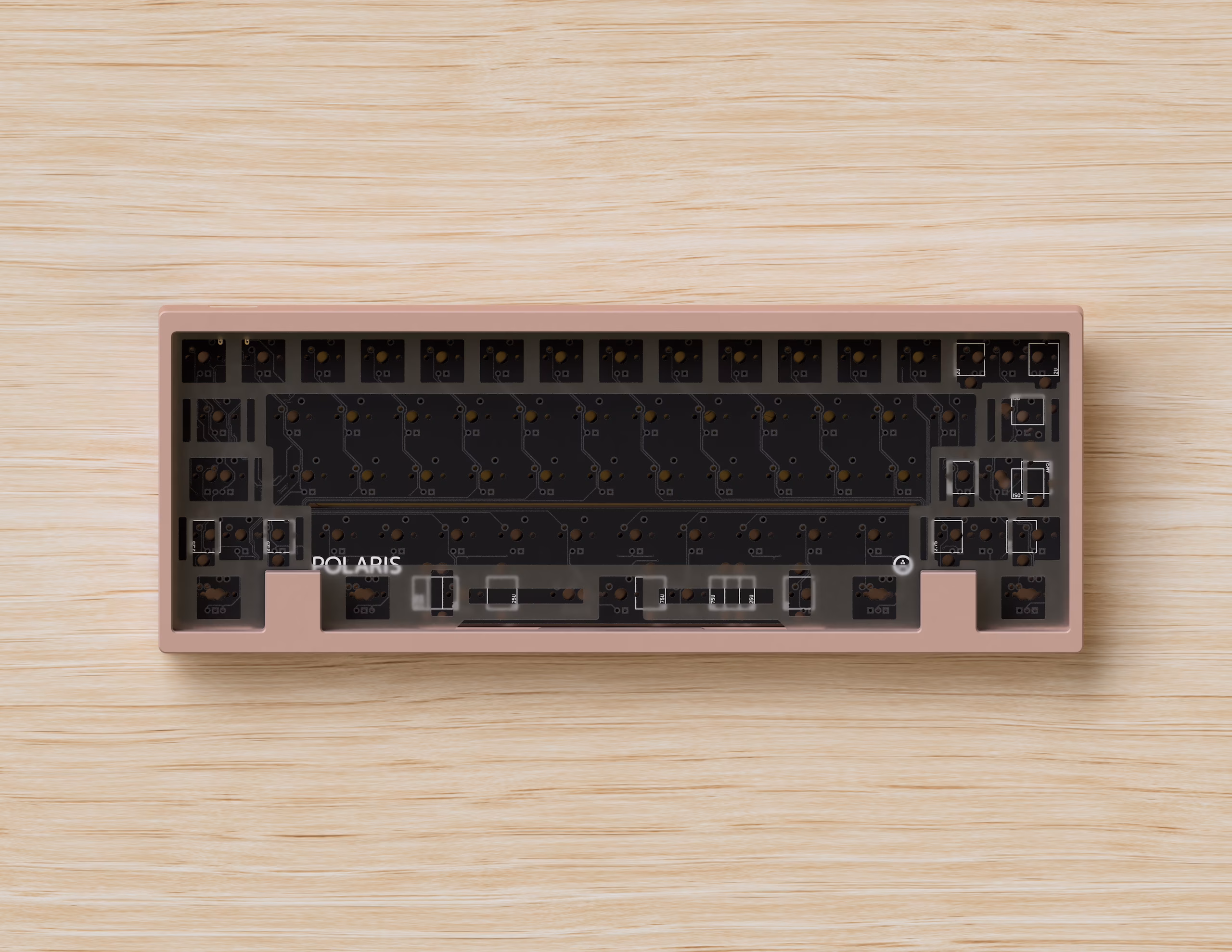

Polaris render rosegold

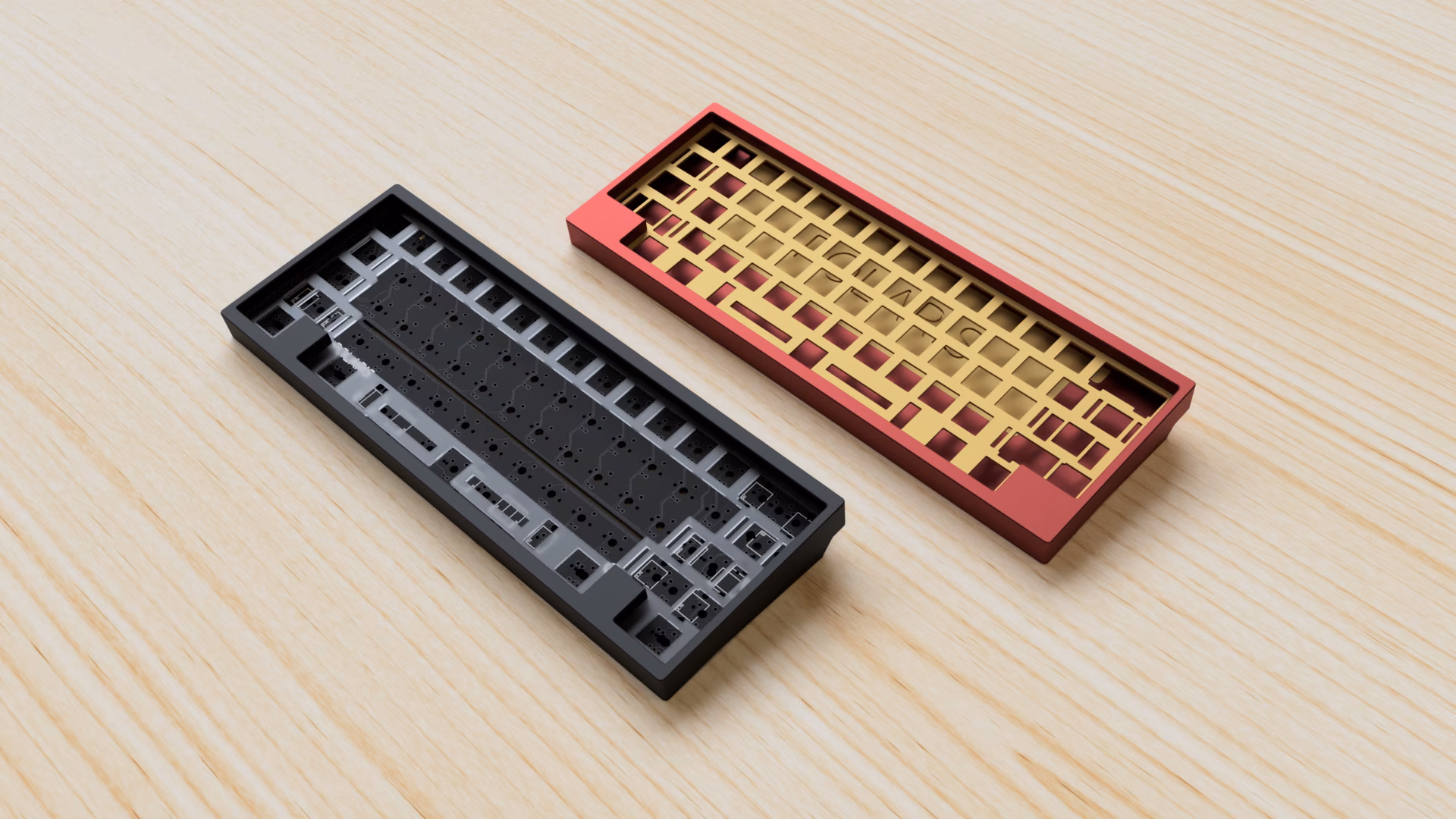

Polaris render top pair

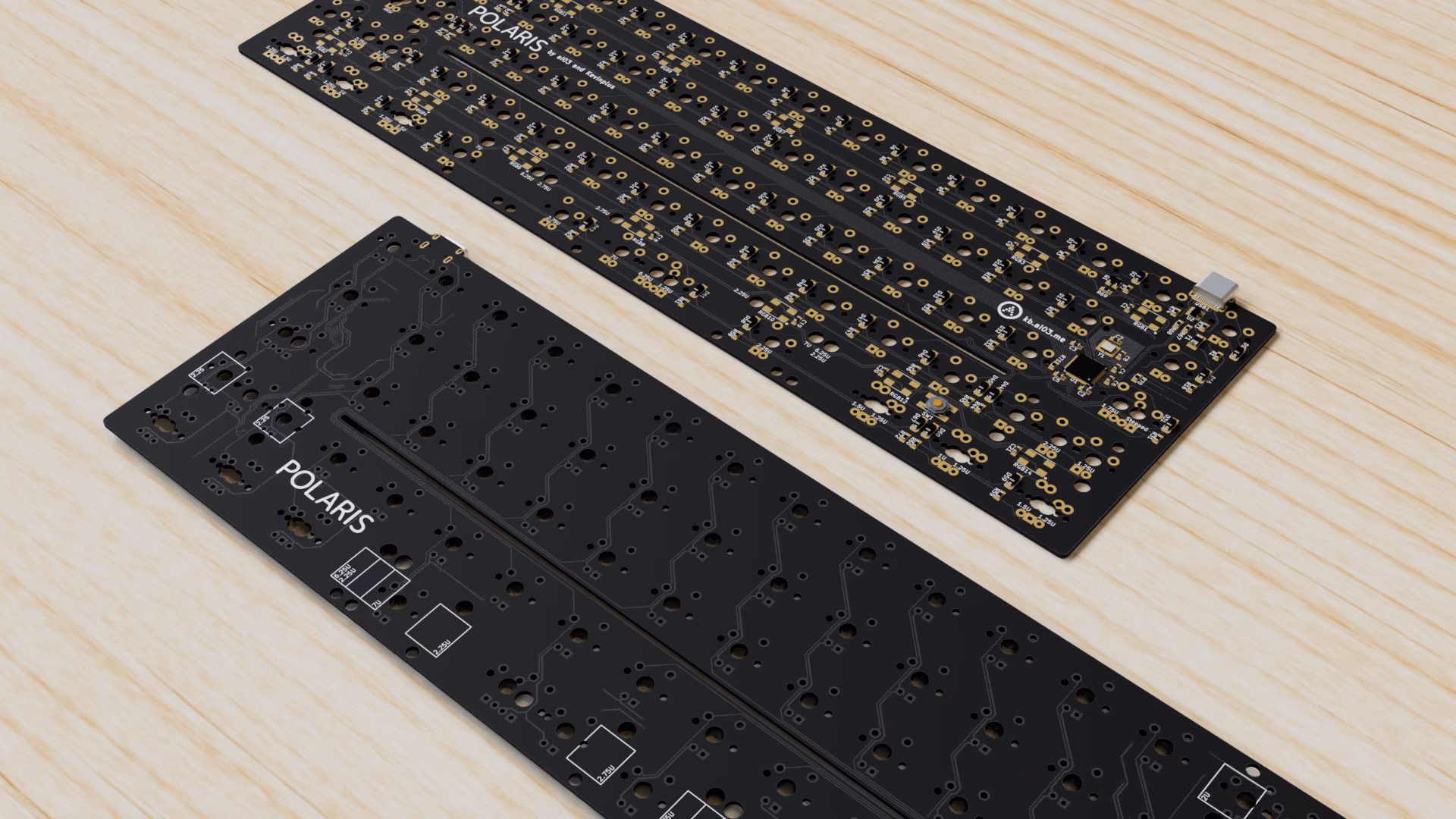

Polaris render pcbs

Project Status

Complete

Extra units batch 2 sold and shipped
GB concluded

Complete

2021-04-02

Extra units batch 2 sold and shipped
GB concluded

Extras sale

2021-03-29

Extras batch 2 will be available at KBDfans on 3/29 19:00PST.

Extras sale

2020-10-01

Extras batch 1 to go on sale on 10/19

Shipping

2020-08-26

Group buy units shipped
Extra units preparing for sale

Group buy

2019-08-06

Group buy will run for 1 month

Announced

2019-04-24

IC published at GeekHack

Hide Updates Log

Gasket Comfort

Cutting no corners, a total of 18 gaskets hold the plate in place for maximum typing comfort, improved acoustics, and easy assembly. Careful engineering from 8 full redesigns and multiple prototypes are tucked away within the slim bezels.

Refined Aesthetic

The seamless chassis borrows the clean look praised in the KBD8X MKII, while adding a rear-angled weight which adds a touch of visible elegance.
Thin bezels are combined with sharp chamfers for a striking modern look.

Taking Things Further

The 1.2mm thick, slot-cut super flexible PCB offers typing comfort that extends the gasket mount benefits.
Rubber pads applied to the PCB make sure that the stabilizers fit into place without issues.

Made For You

The plate is offered in brass and polycarbonate, WKL and universal layouts, and half- and full-plate options to meet the exact aesthetic and comfort you desire.

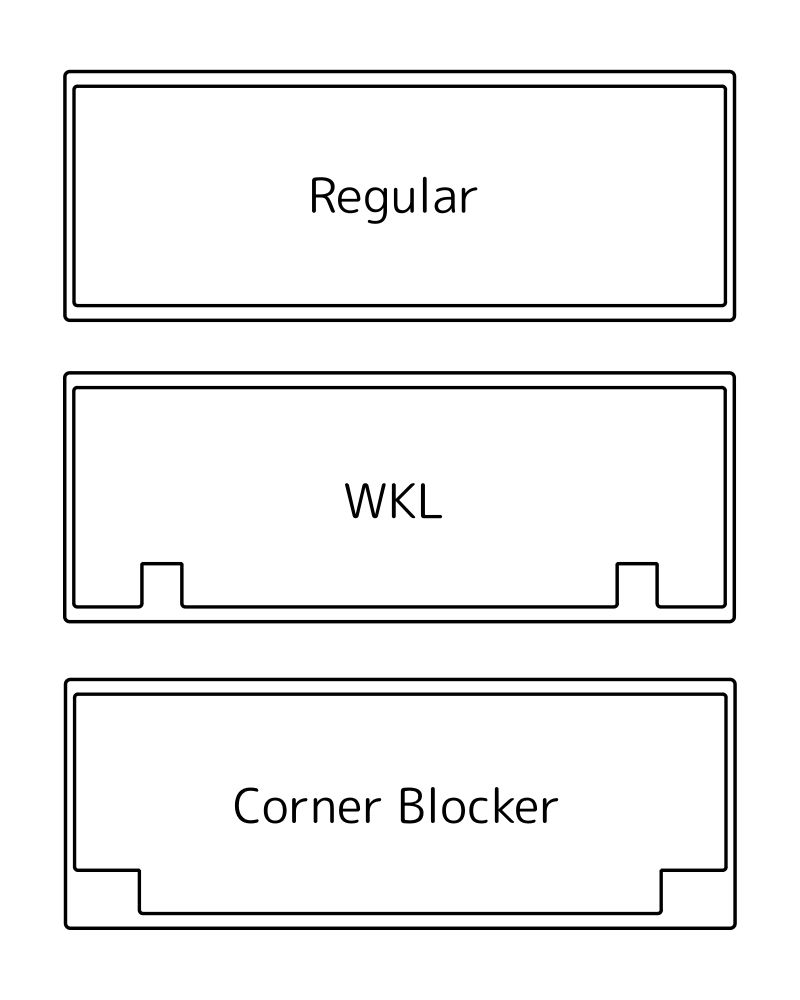

Choose between regular, WKL, and corner blocker style tops to suit your needs.

Cutting No Corners

Two foam mid-layers, one below the plate and one below the PCB, fill the case to cancel vibrations and echoing.
The plate is completely isolated by gaskets, leaving no metal-to-metal contact between the plate and chassis once assembled.

Specifications

Specifications Table Header

Case weight

~1.3kg

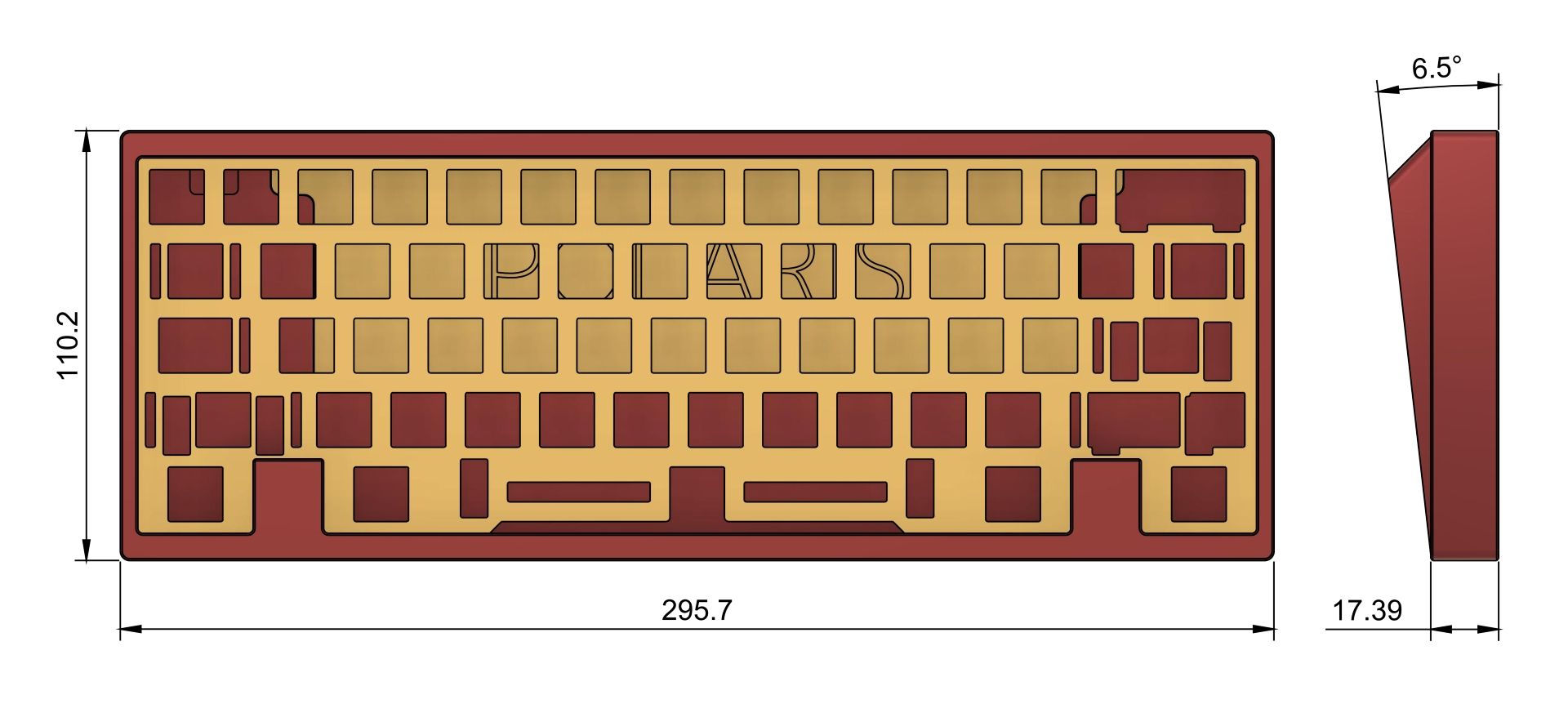

Dimensions

296 x 110 x 28mm

Typing angle

6.5deg

Price (At time of sale)

265 USD, free shipping included

Case colors

  • E-White
  • Black
  • Space gray
  • Blue grey
  • Burgundy red
  • Olive green
  • Rose gold
  • Purple
  • Polycarbonate

Case tops

Regular, winkeyless, corner blocker
Layout Diagrams

Plate options

  • Layouts: WKL, Universal
  • Style: Full, Half
  • Material: Brass, Polycarbonate

Layouts

  • Universal Plate: Universal Layout Diagram

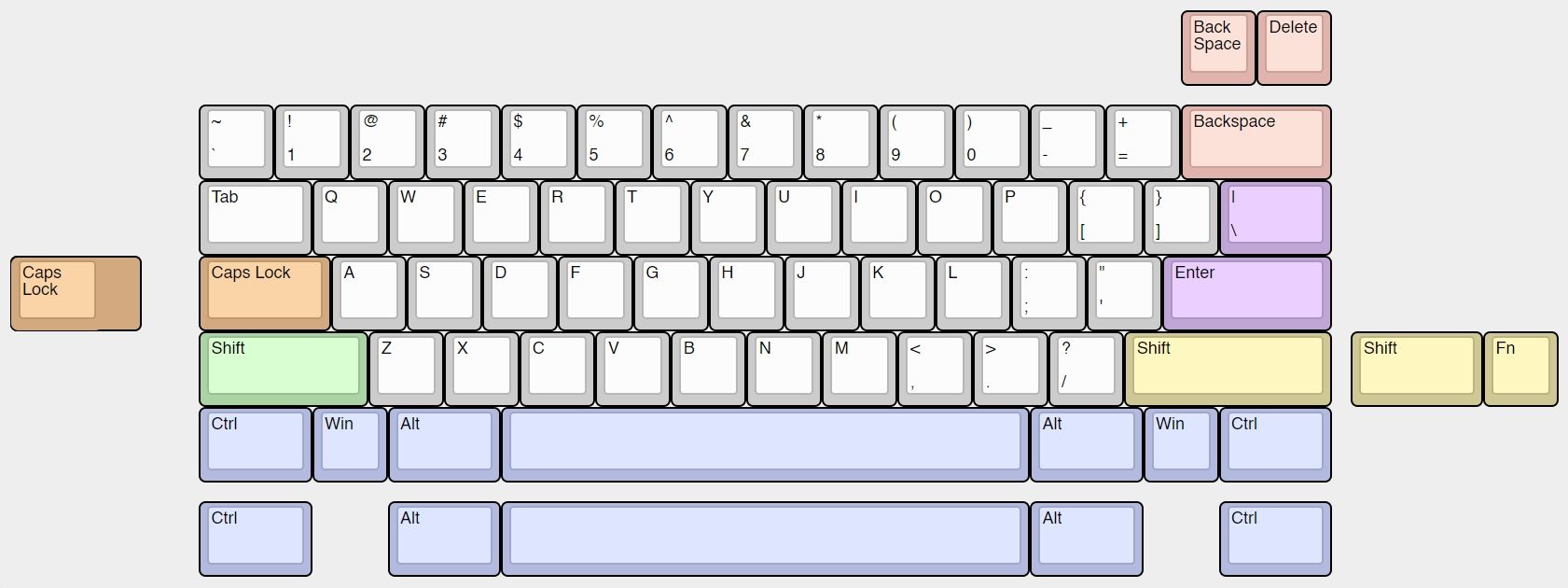

  • WKL Plate: WKL Layout Diagram

Files and Resources

Build guide

View online here

Hardware spec

Screws:

  • Case screws are M2x8mm
  • Weight screws are M3x4mm

PCB outline

Download

Plate files

Download
