Equinox XL
Equinox is back - The compact size and PCB-mount structure remain, but this time with more keys and a screwless exterior.
Current Project Status: Group Buy Closed
Boards will be entering production once the aluminum source blocks are obtained.
| Date | Update |
|---|---|
| 2021-08-30 | Boards will be entering production once the aluminum source blocks are obtained. |
| 2021-08-15 | Board will be available until August 29 |
| 2021-08-04 | Group buy going live on August 15 at Cannonkeys, Daily Clack, Salvun, Yusha Kobo, and TypePlus |
| 2021-06-19 | IC published at GeekHack |
Visible Evolution
The proven tabbed-gasket PCB mount structure from the original Equinox remains, offering an unusual yet comfortable typing feel designed primarily for plateless use.

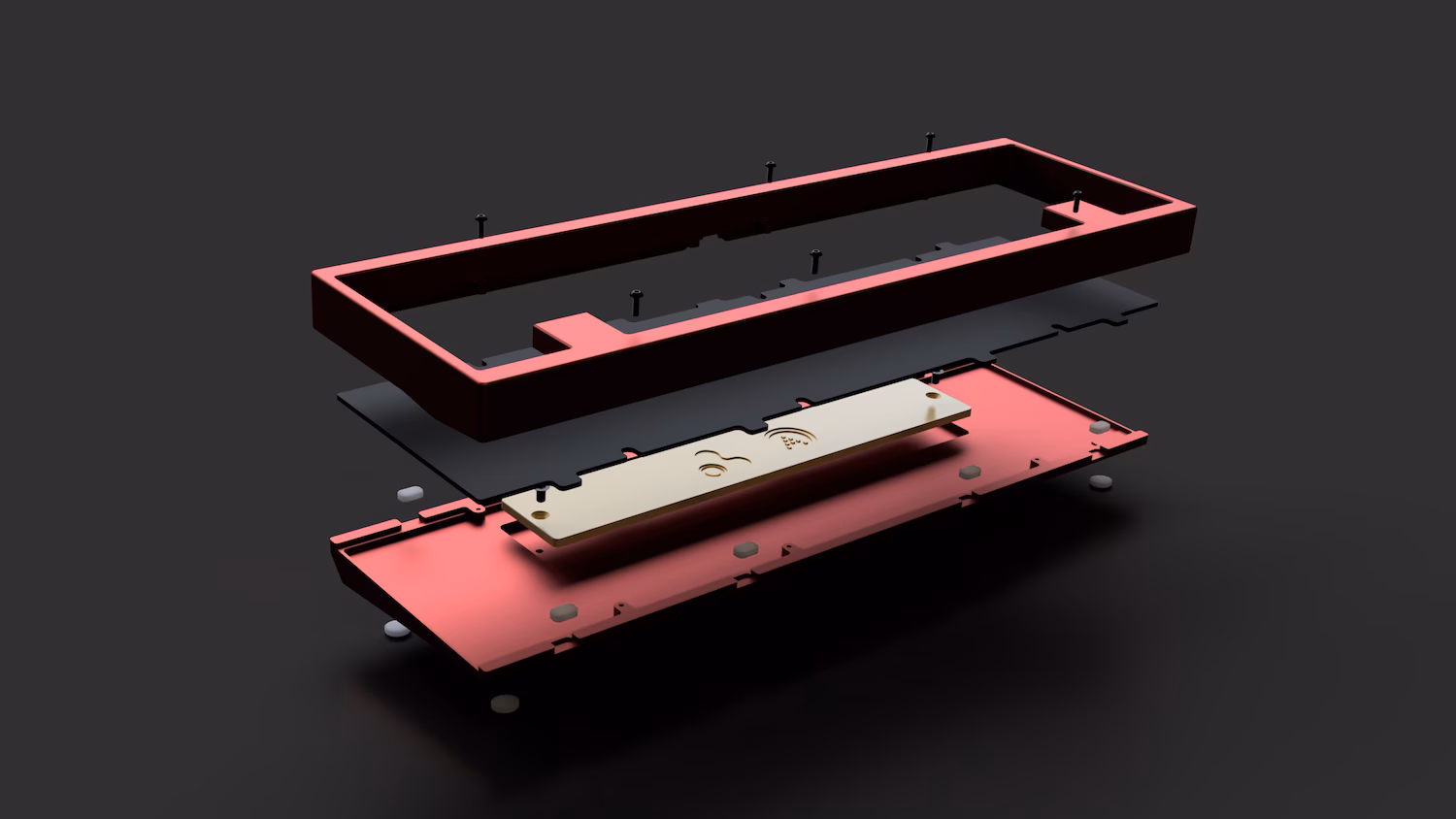

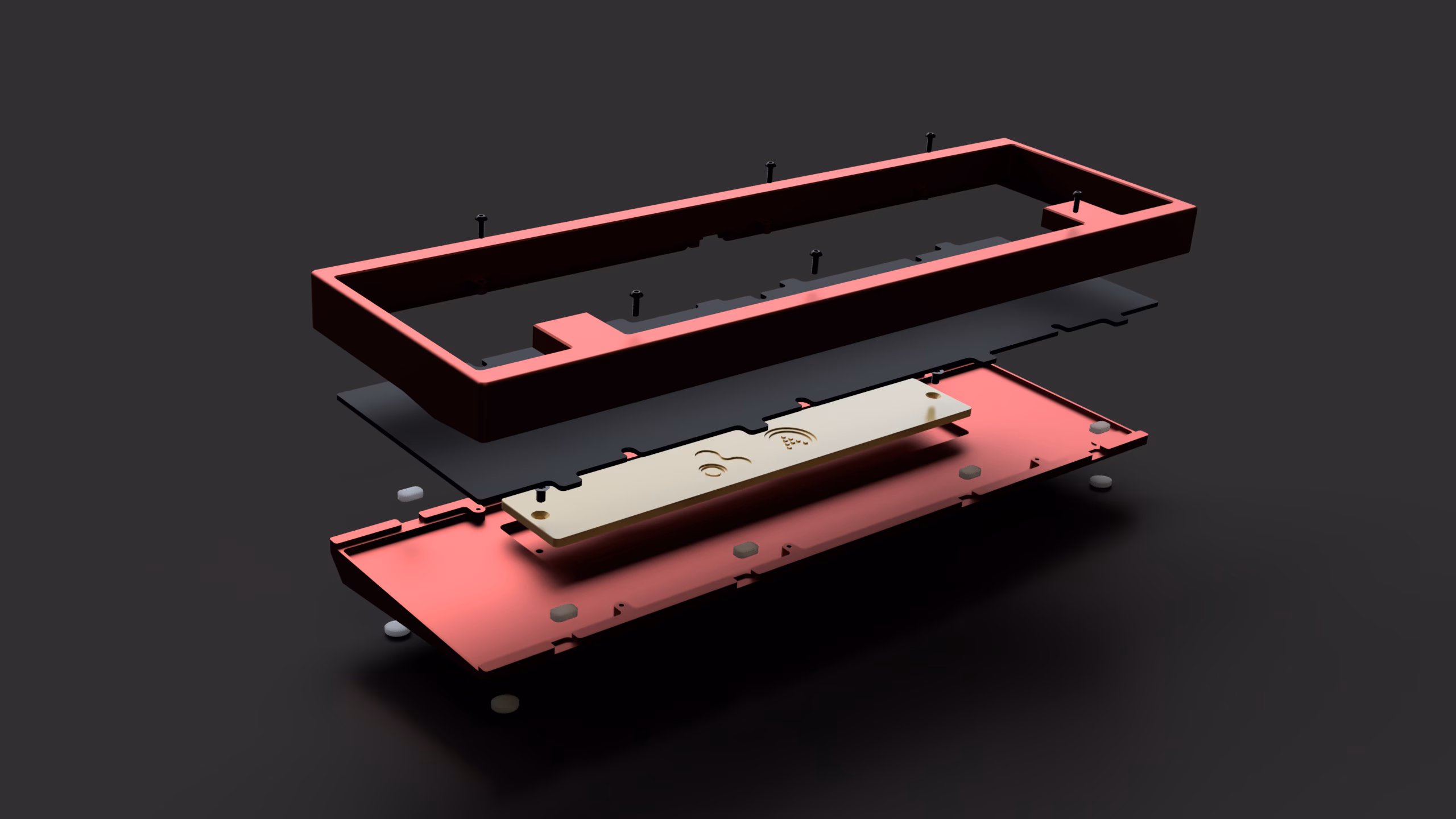

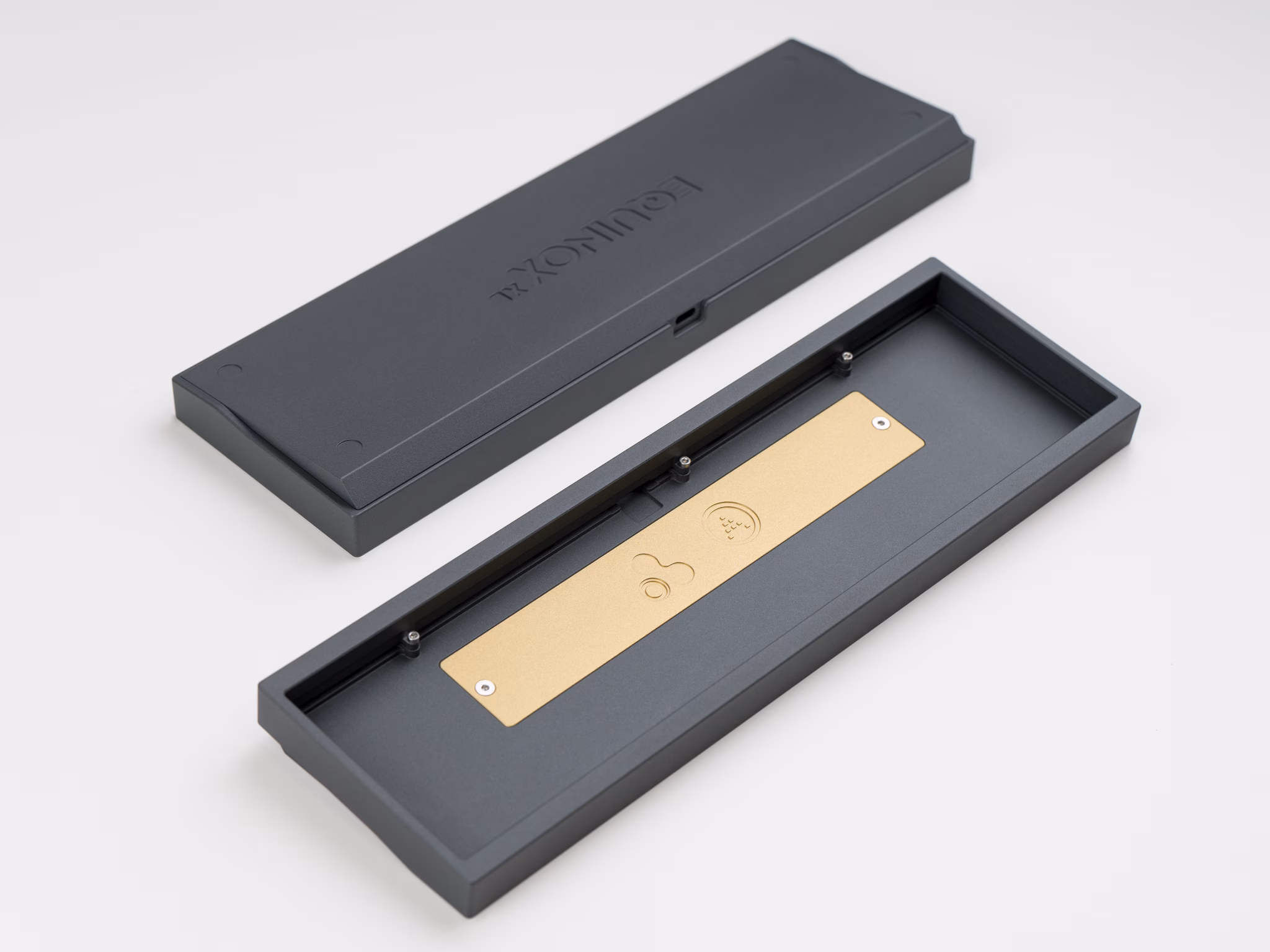

Equinox XL has been updated from the original with a seamless design and internal screws, making the exterior clean and sleek from any angle.
From the Desk to the World
The compact yet functional 50% key layout of the Equinox XL allows for easy migration from larger layouts while also ensuring compatibility with many keysets.
An internal brass weight balances the board’s mass - just light enough for portability, and just heavy enough for stability during use.
Tailored to the Occasion
Choose between winkey and winkeyless variants to choose between maximum functionality and a classic aesthetic.

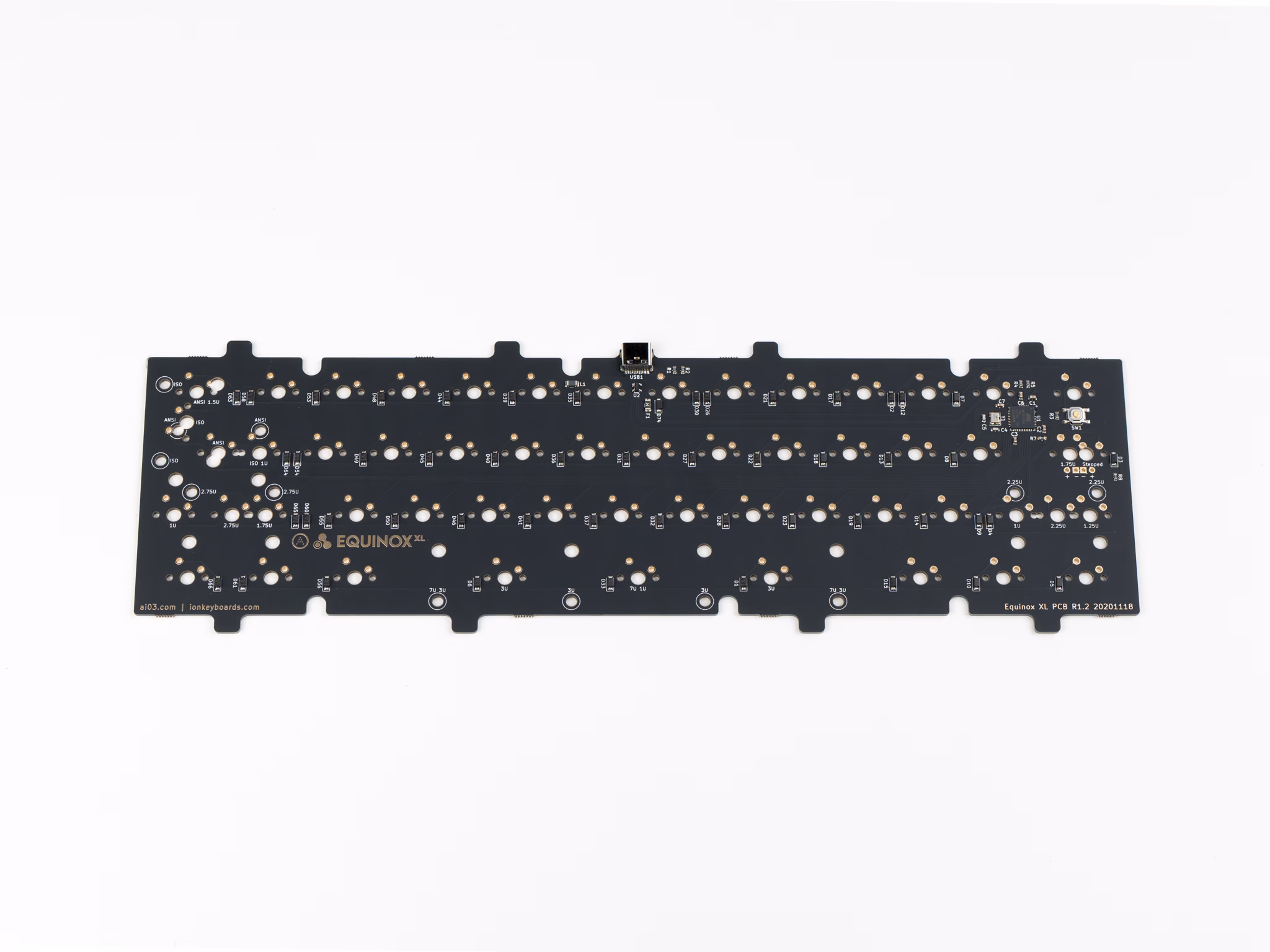

The PCB allows for 3U-1U-3U split spacebar to extend productivity further without sacrificing the symmetrical aesthetic.

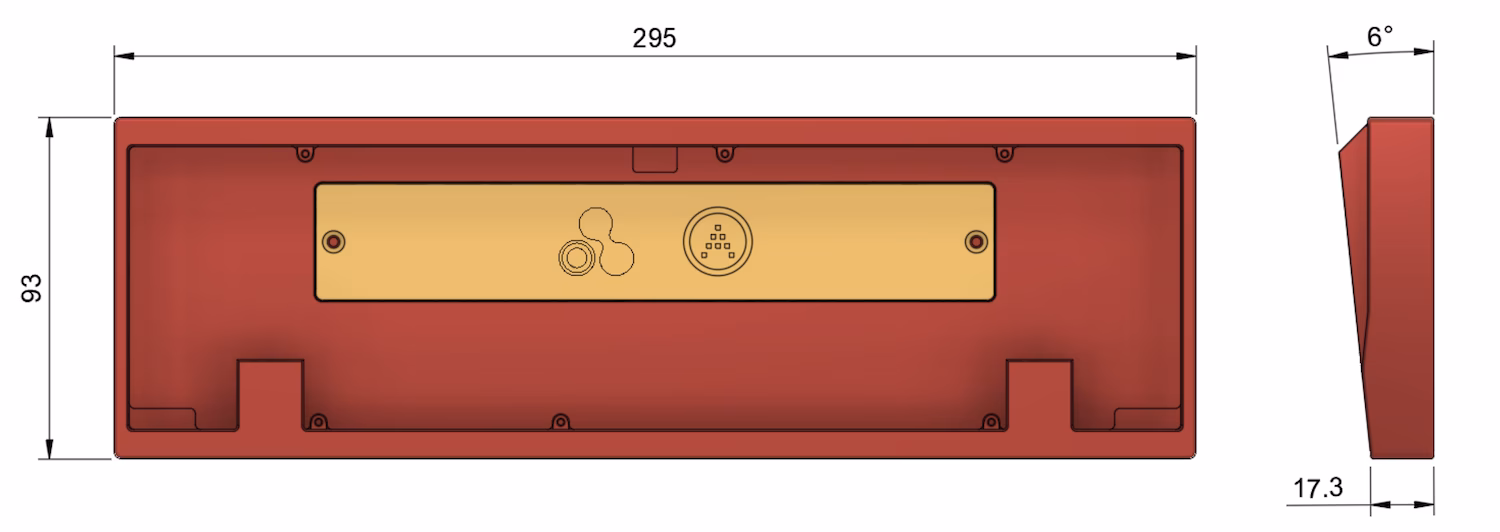

Specifications
| Materials | Aluminum case, internal brass weight, manufactured by Salvun CNC |
| Weight | ~670g for the case incl. internal weight |
| PCB | Soldered (Non-hotswap) |
| Case Variants | Regular, WKL |

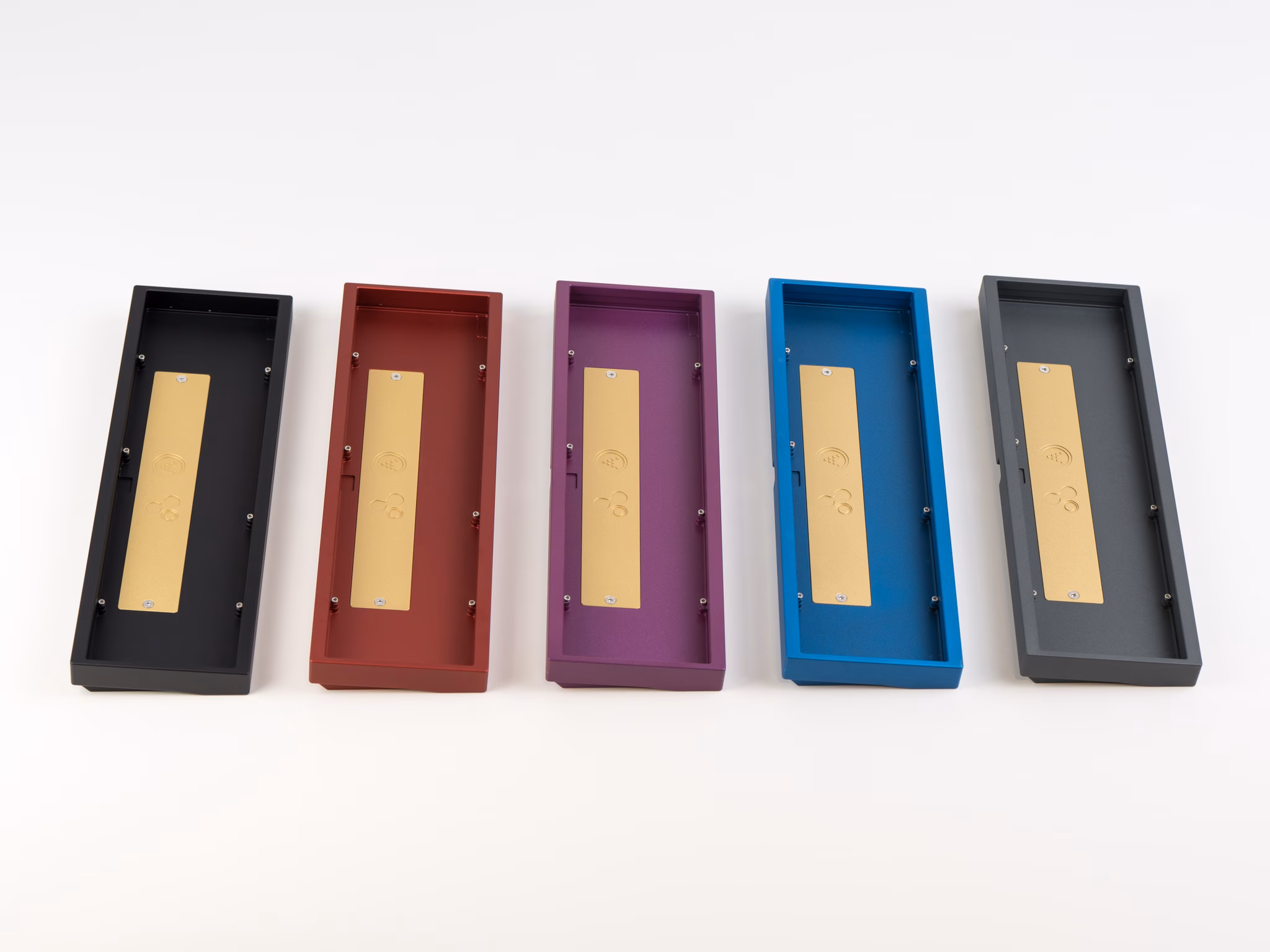

| Case Colors | Black, Grey, Blue, Red, Purple |
| Vendors | Vendors: Cannonkeys, Daily Clack, Salvun, Yusha Kobo, Typeplus |
| Pricing (at time of GB) | 320USD |
