Vega Build Guide - Page 2

Preparing the case

Let’s begin with the case.

  1. Remove the components from the box if not already done.

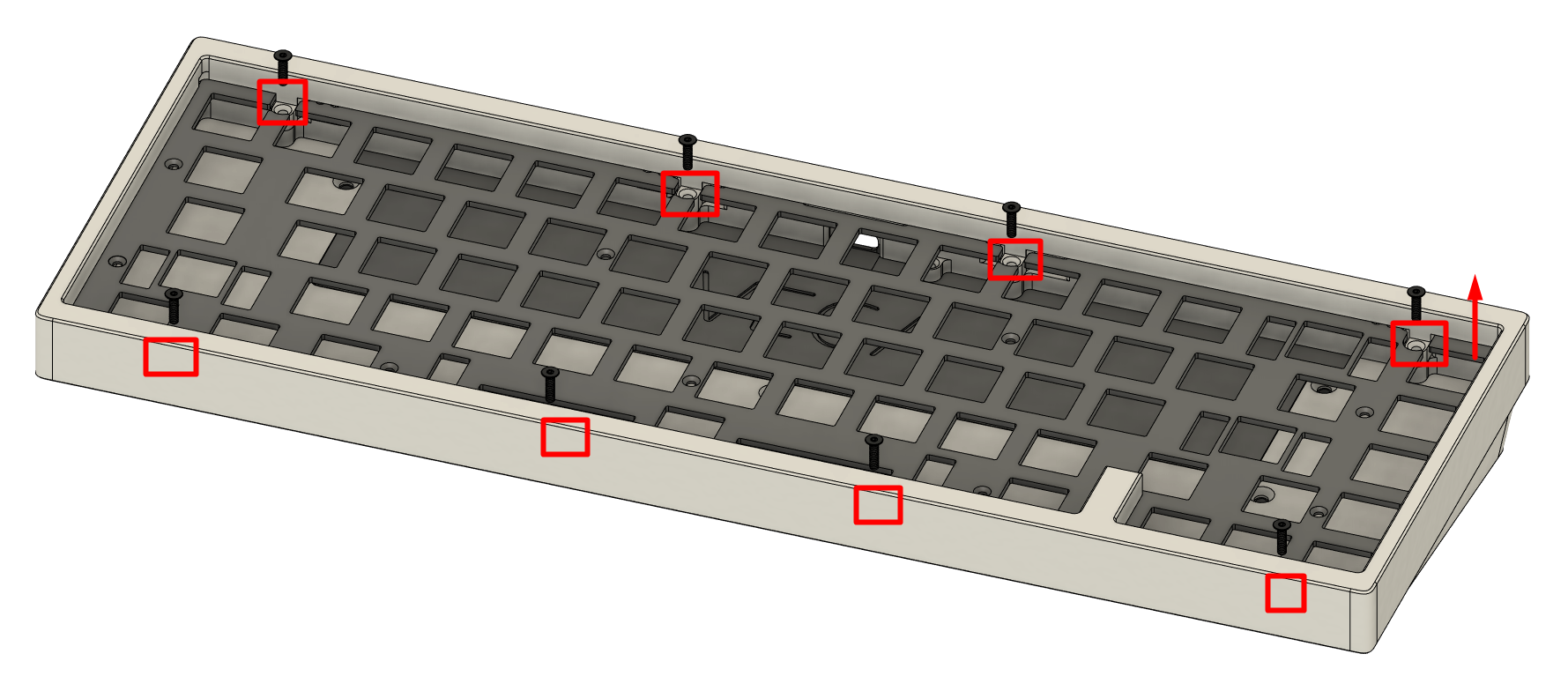

  2. Of the two supplied hex keys, use the smaller one to unscrew the case screws. Screw locations

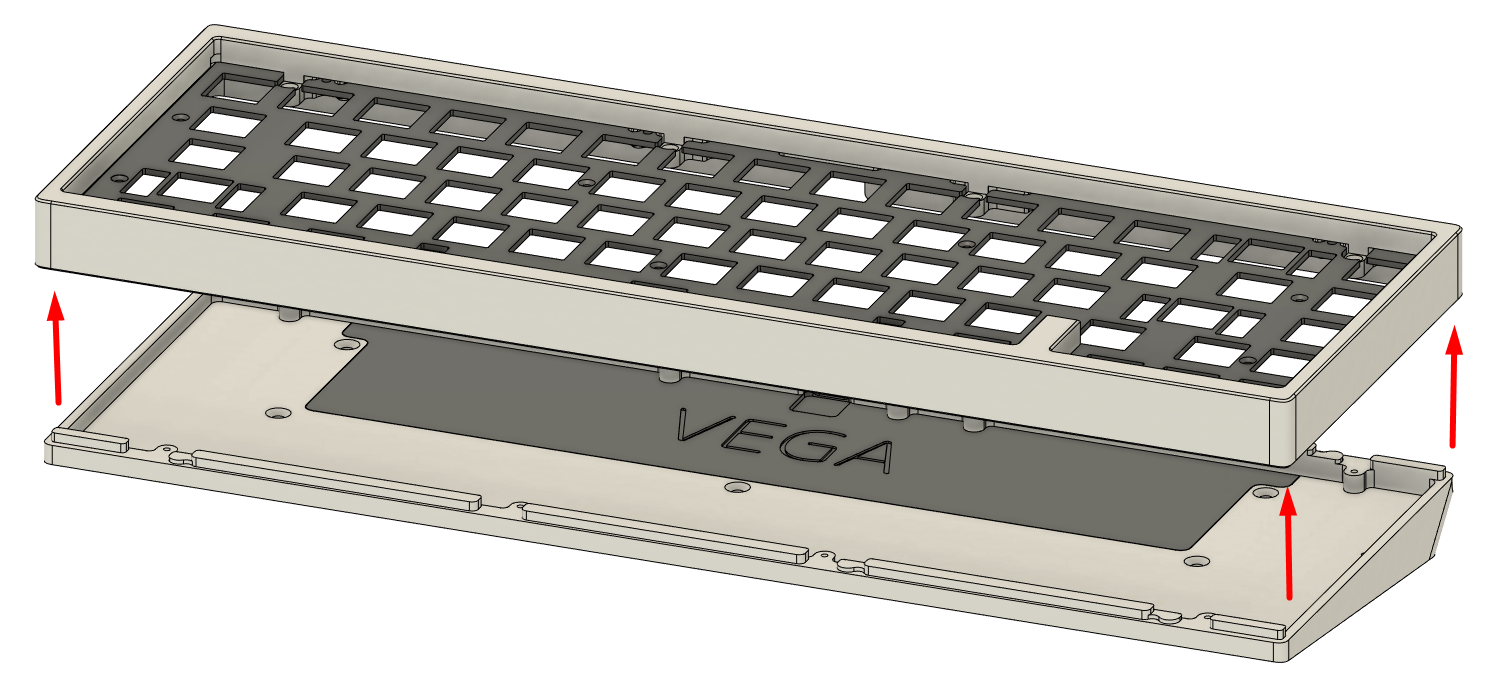

  3. Remove the top case half, and flip it upside down. Top removal

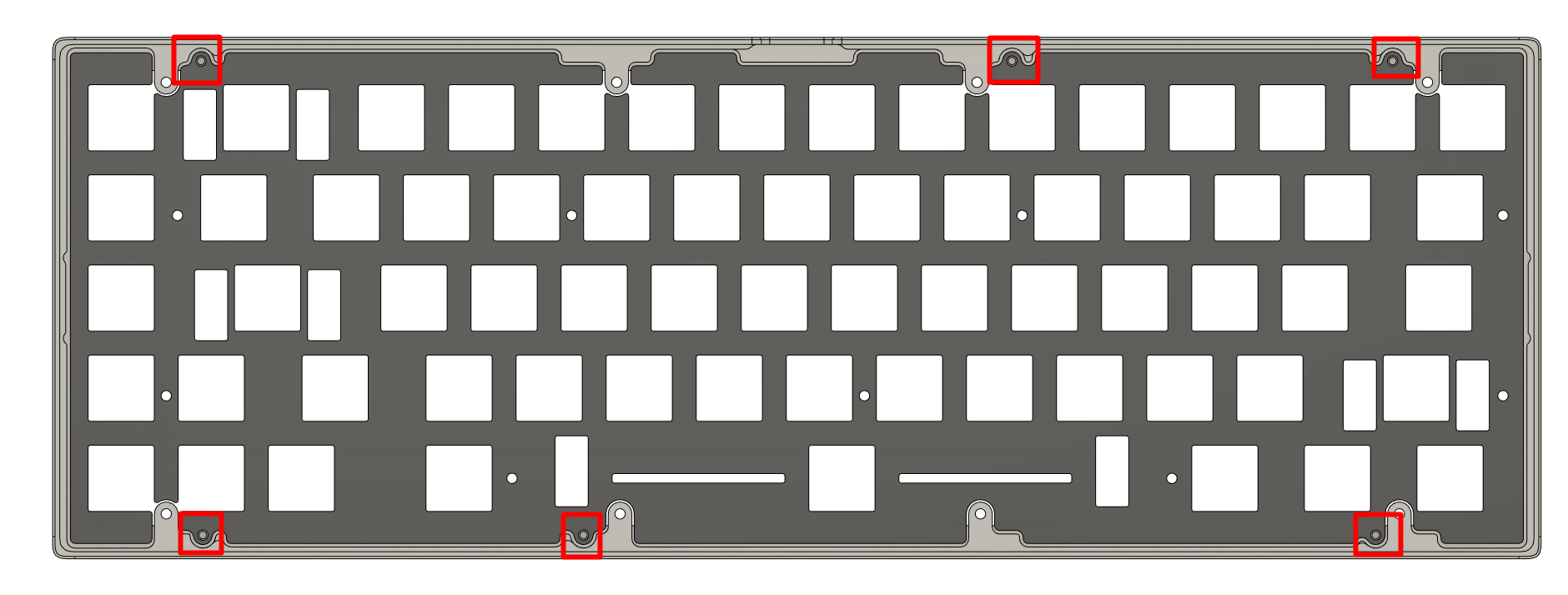

  4. Unscrew and remove the temporary plate screws. Plate screw locations

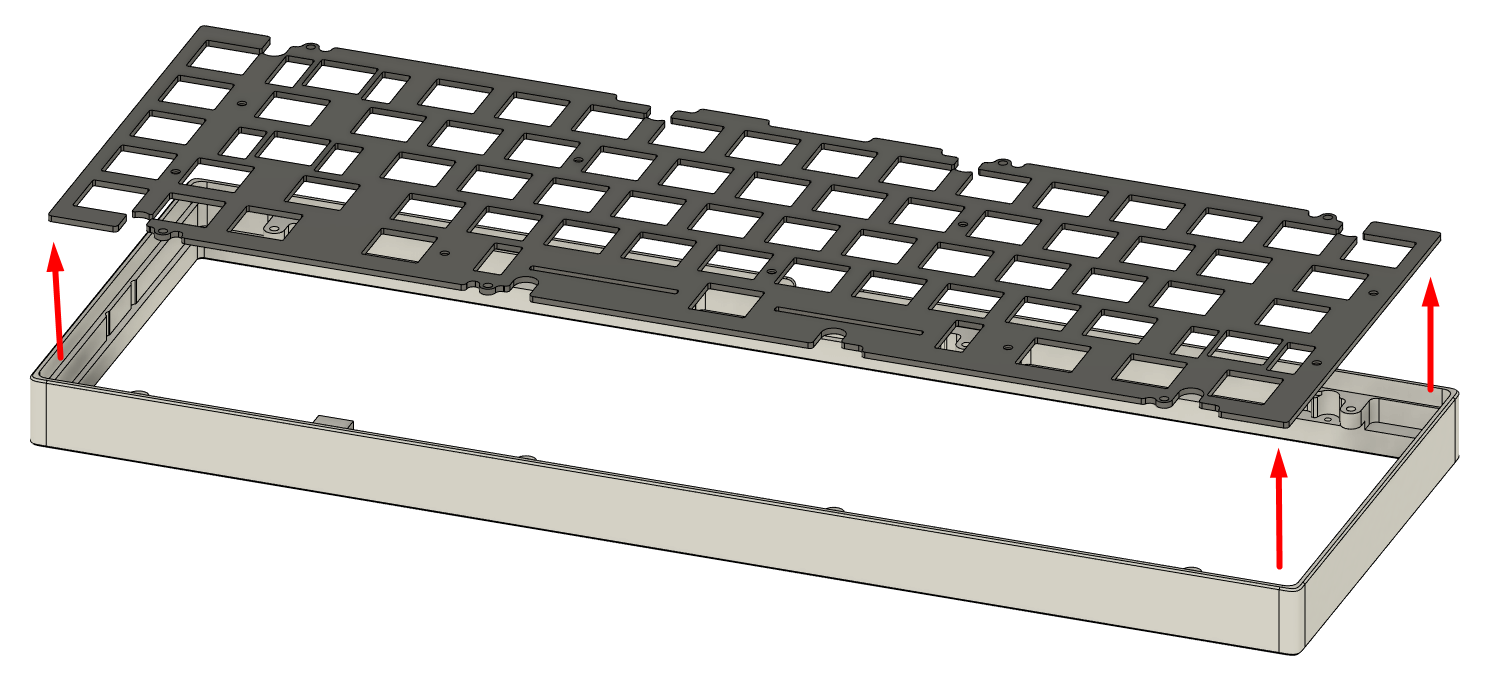

  5. Remove the plate from the case top half. Plate removal

  6. At this point, the case should be disassembled enough for switch installation.

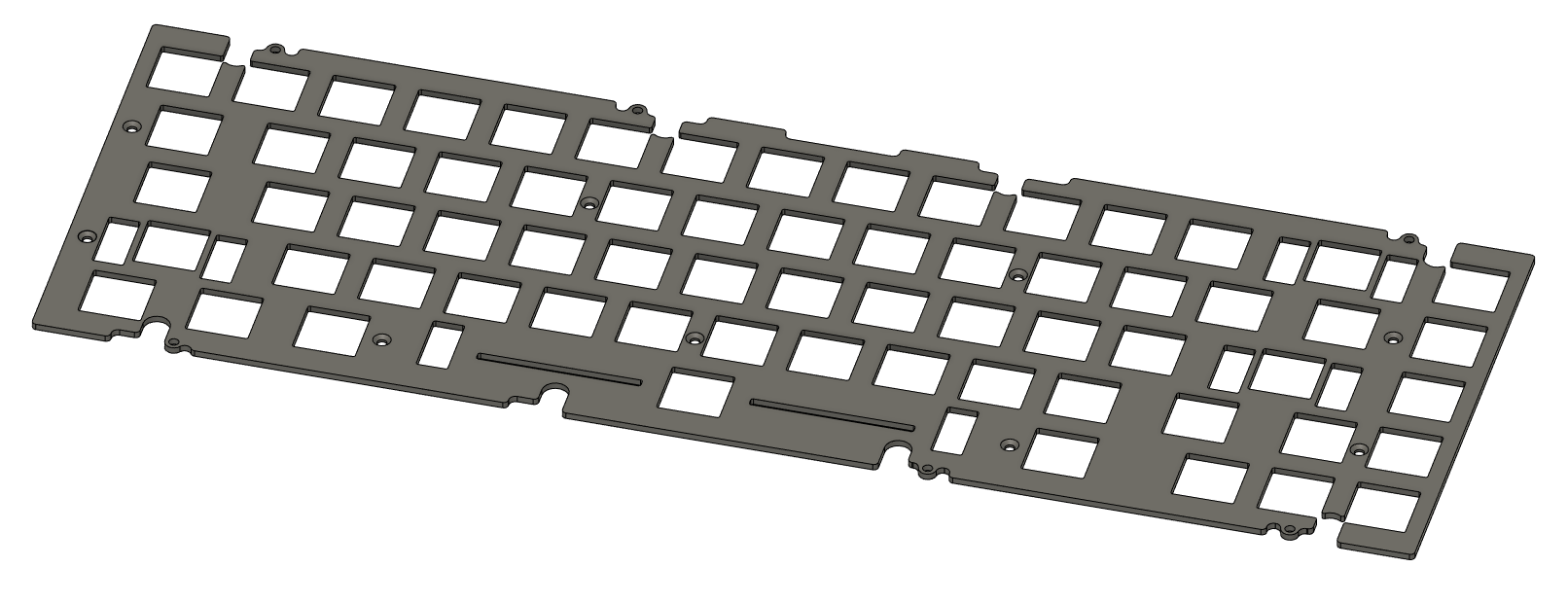

    Prepare the plate and adhesive gaskets. Plate

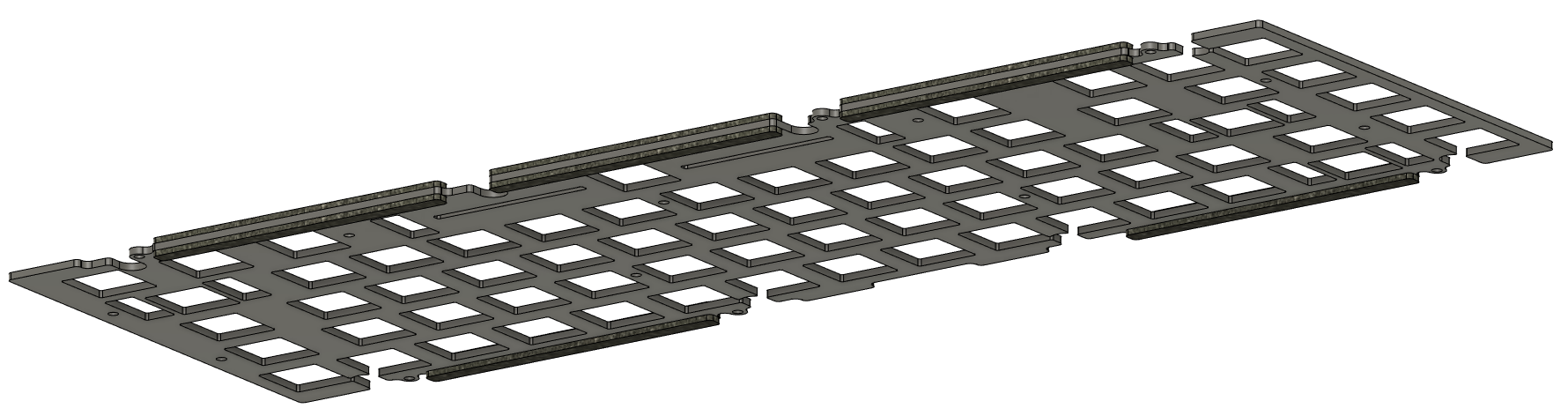

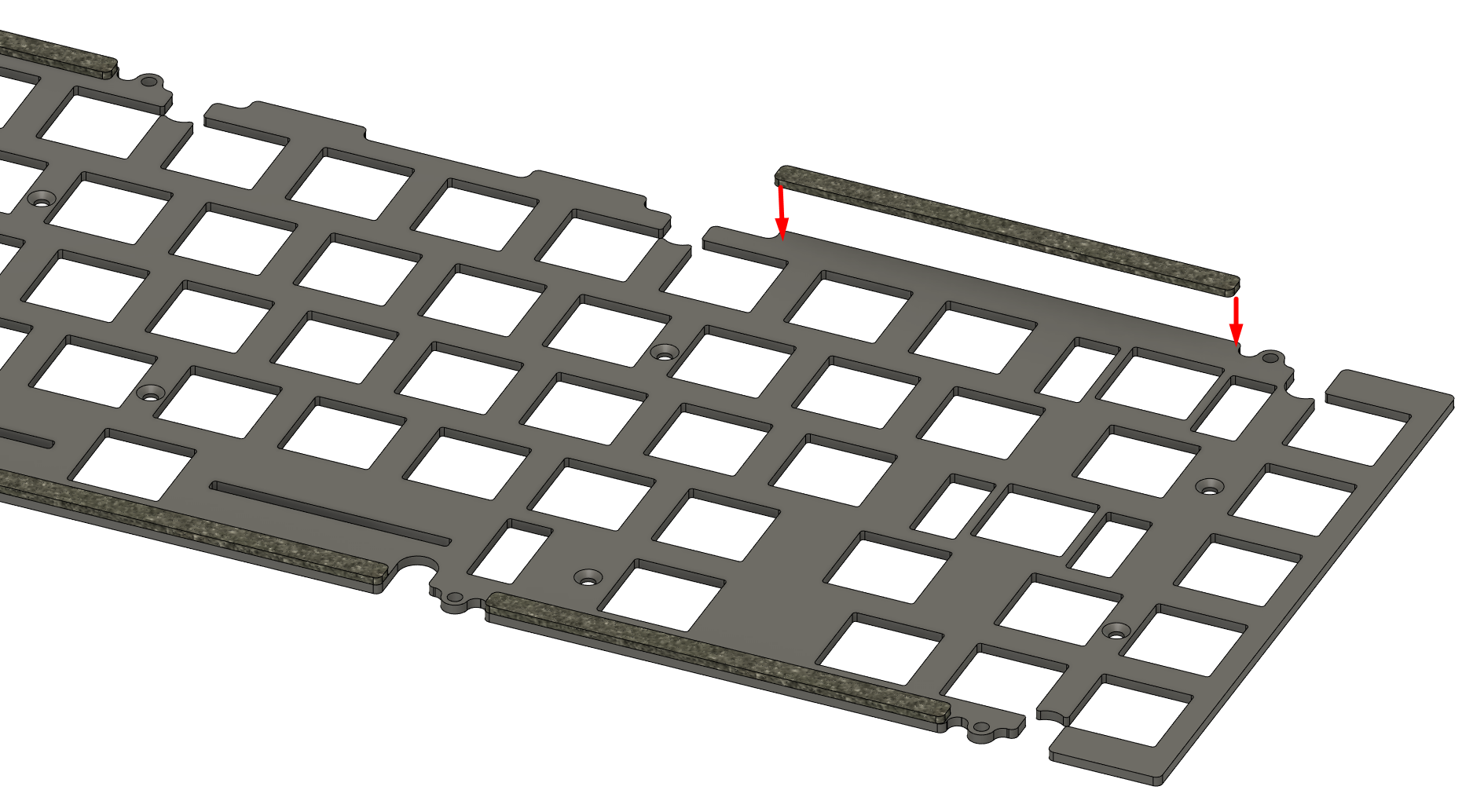

  7. Carefully place 5 of the long gaskets onto the plate, one per tab.
    Note: For the minority who are planning on using aftermarket custom plates, install these gaskets on the case area where the plate tabs overlap; this applies to all gasket steps. For specific warnings and instructions, see here.

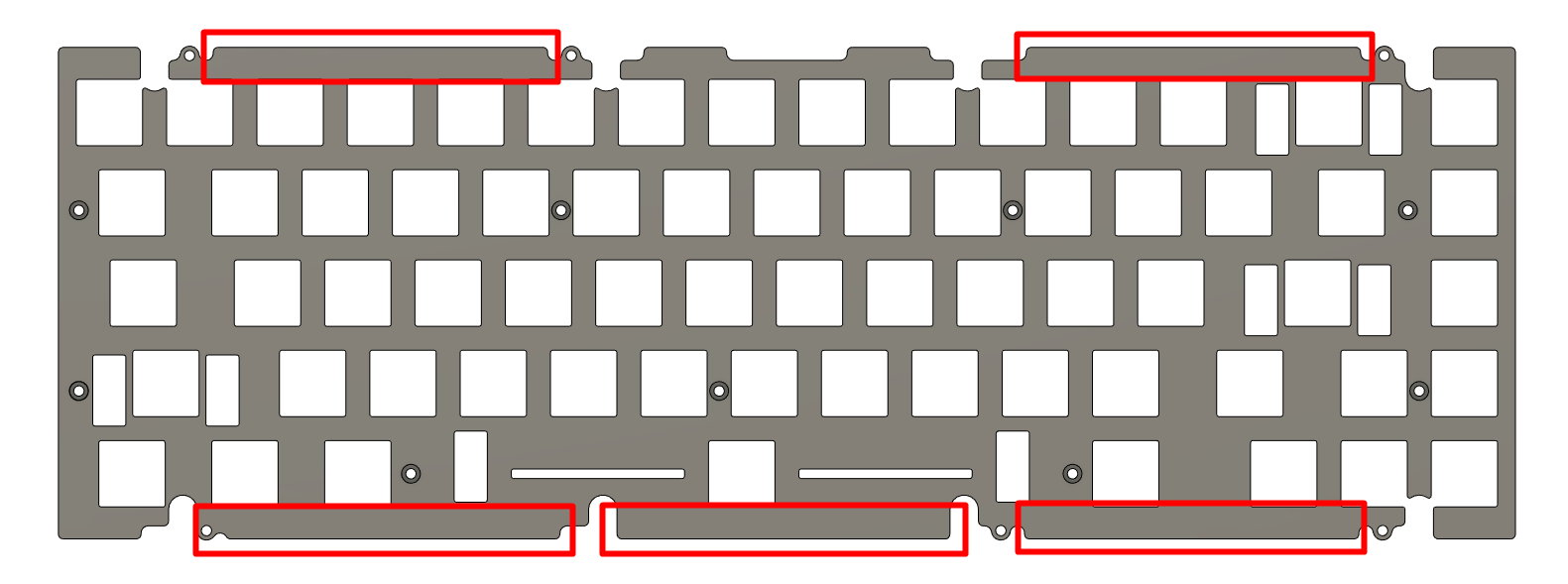

    Gasket locations Gasket install

  8. Repeat on the underside; there should be 10 gaskets installed at the end of this step. Underside gaskets

  9. Now prepare the sheet of shorter gaskets.

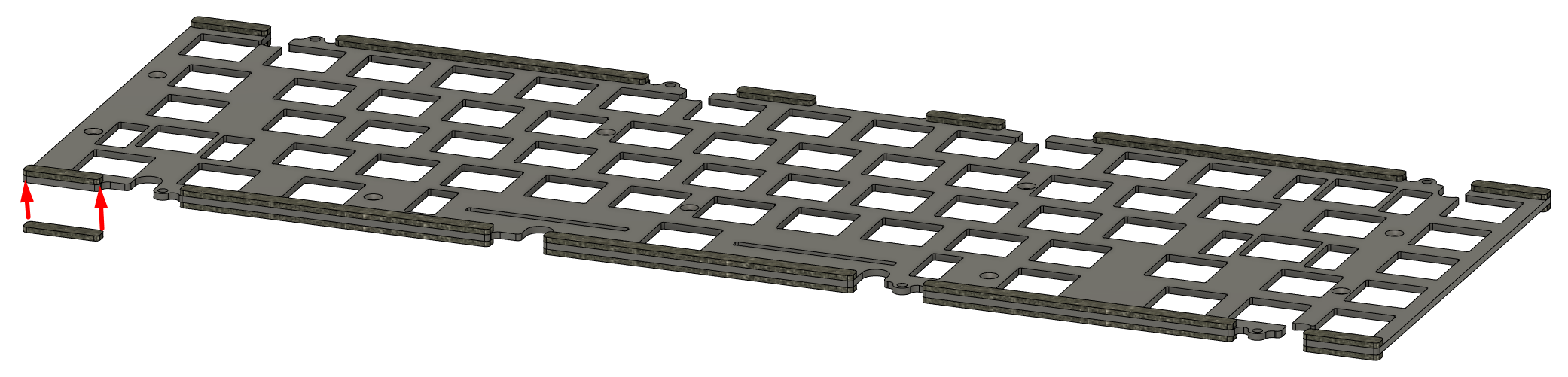

    Carefully place 6 of these on the marked tabs. Short gasket locations

  10. Repeat the process on the underside; there should be 22 total gaskets installed at the end of this step. Short gasket underside

  11. Set the completed plate aside.

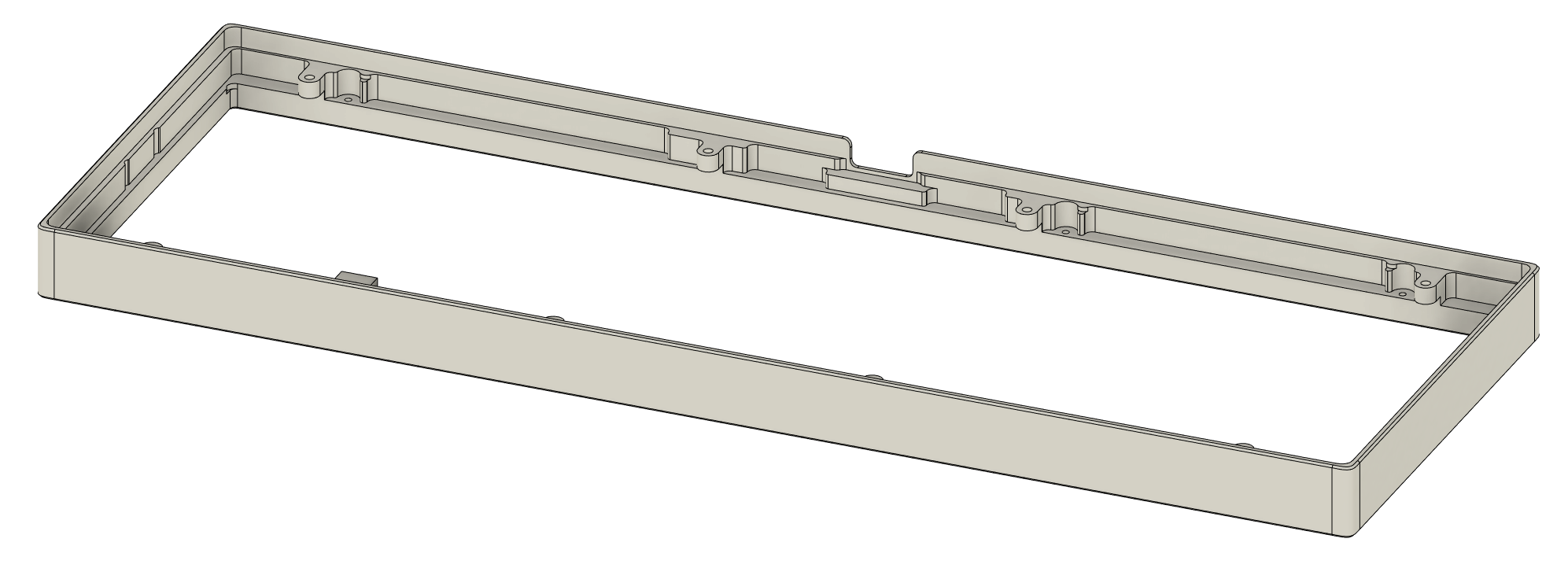

    Prepare the case top half and the small rectangular gaskets. Case top

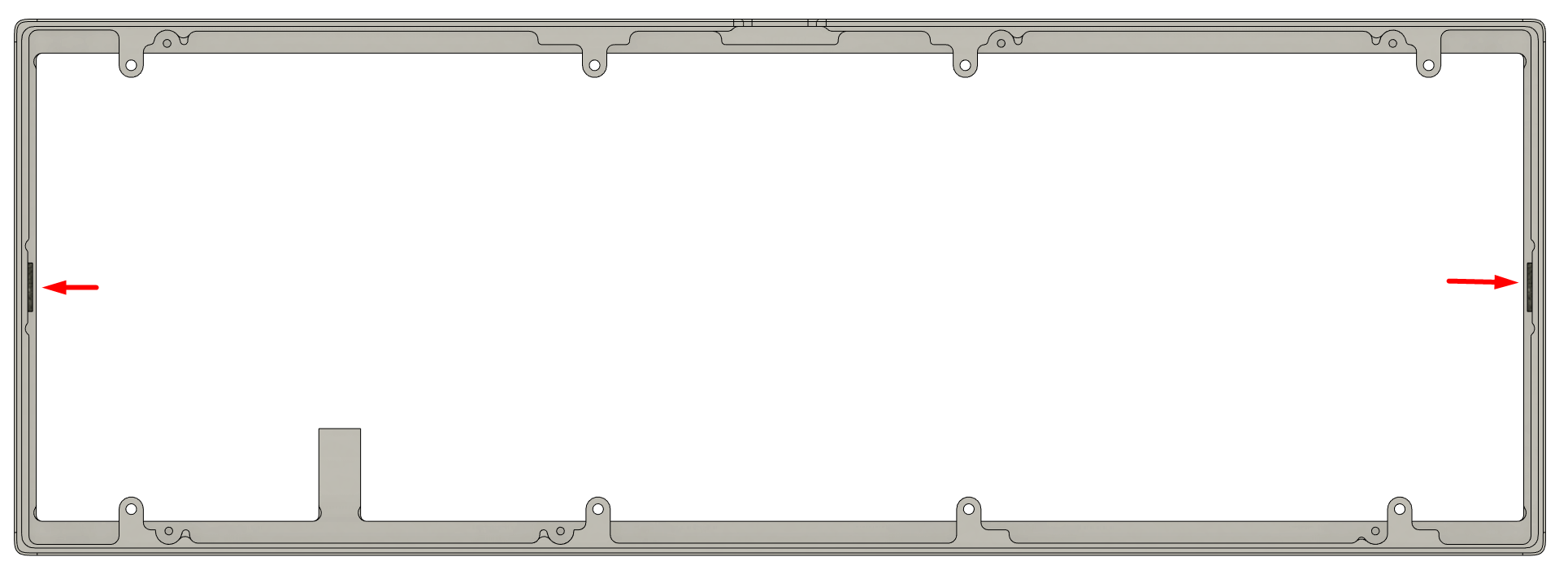

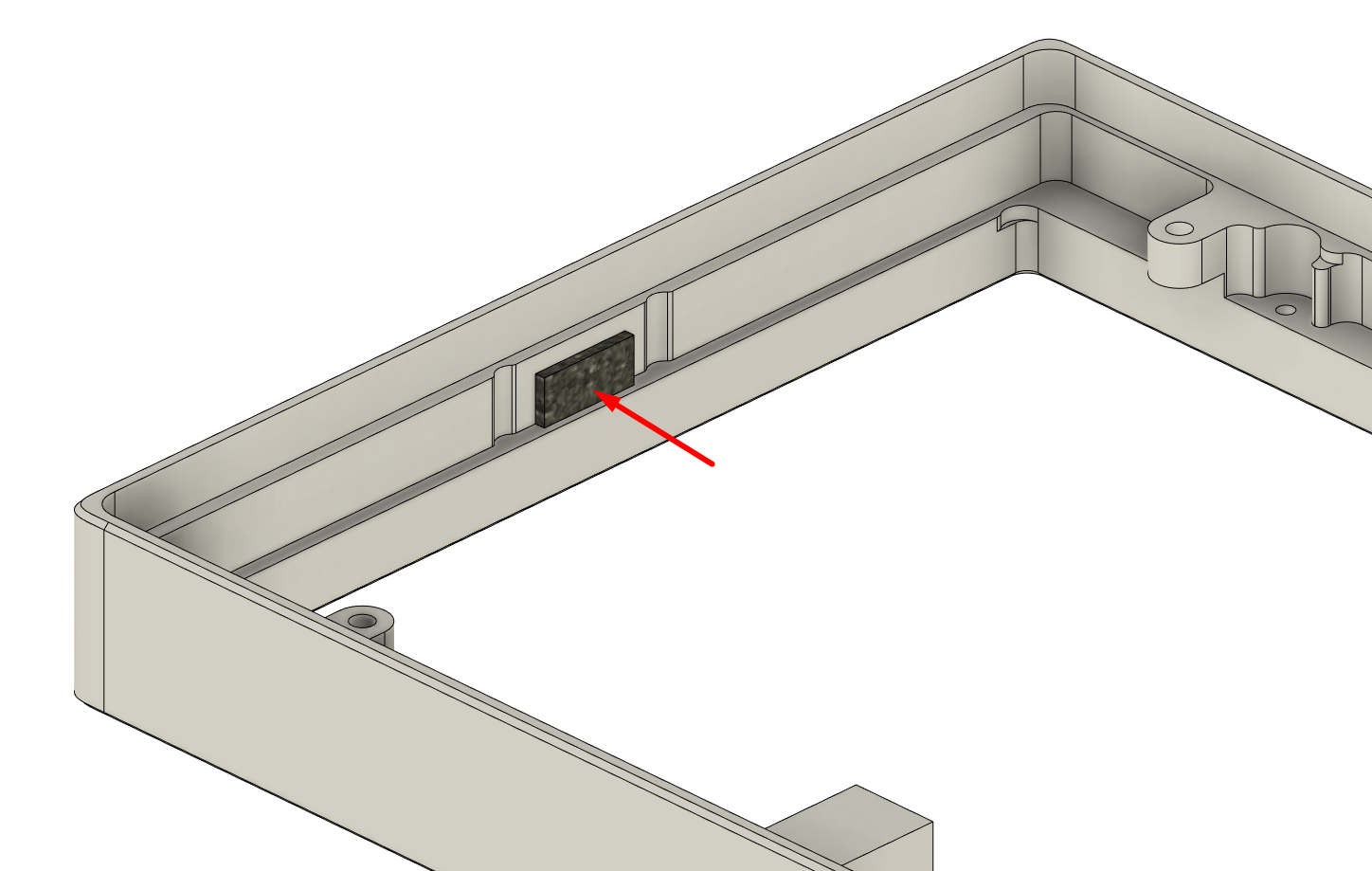

  12. Place a rectangular gasket horizontally between the marked indents on the side as shown.
    Repeat on both sides.
    Side vertical gasket locations
    Side vertical gasket locations top-down

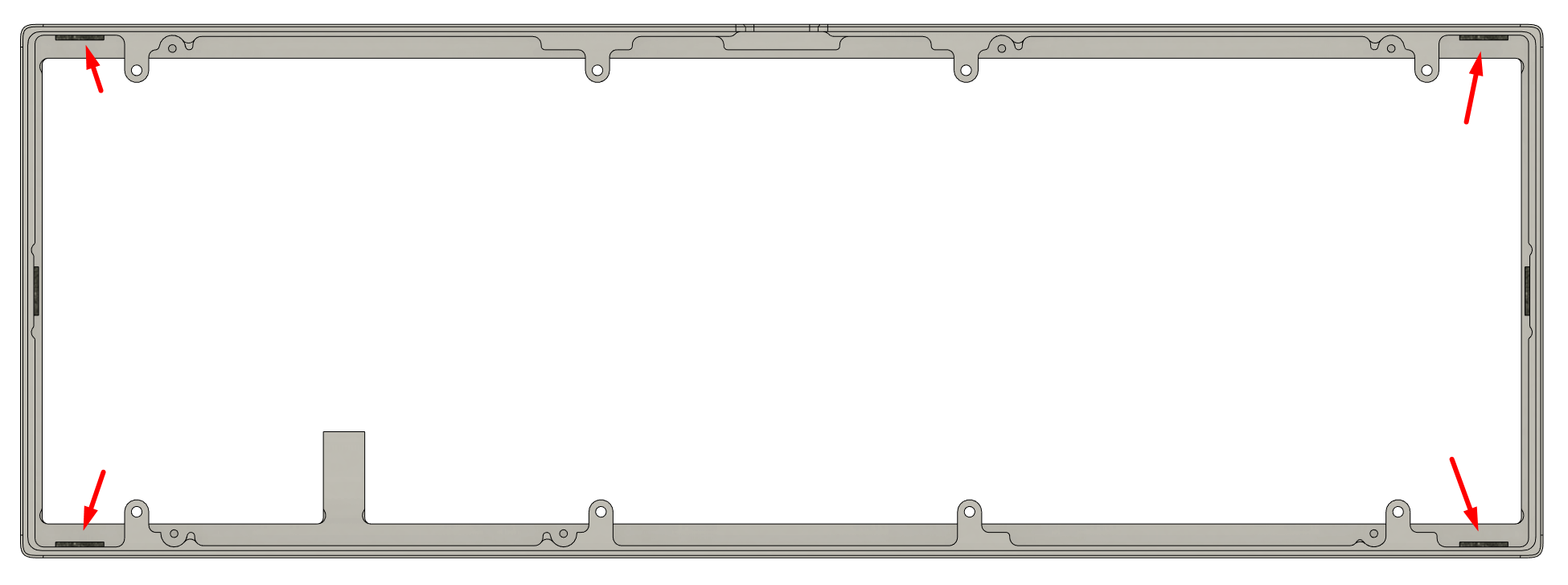

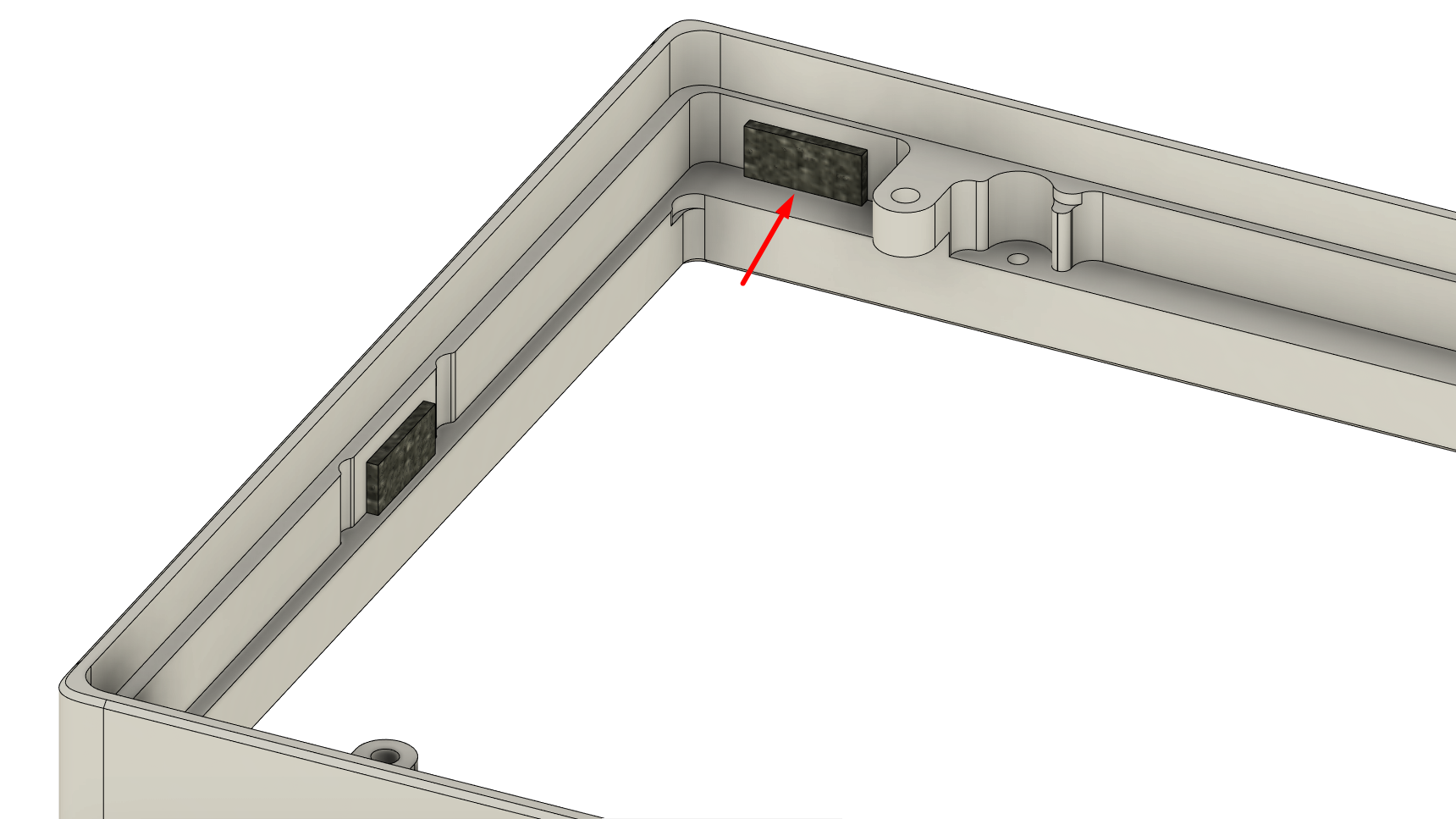

  13. Install four more of these rectangular gaskets in the corner wells as shown, one per corner. Top/Bottom vertical gasket locations
    Top/Bottom vertical gasket locations top-down
    By the end of this step, the top case half is complete and ready for assembly.
    Set the top half aside.

  14. Prepare the bottom case half.

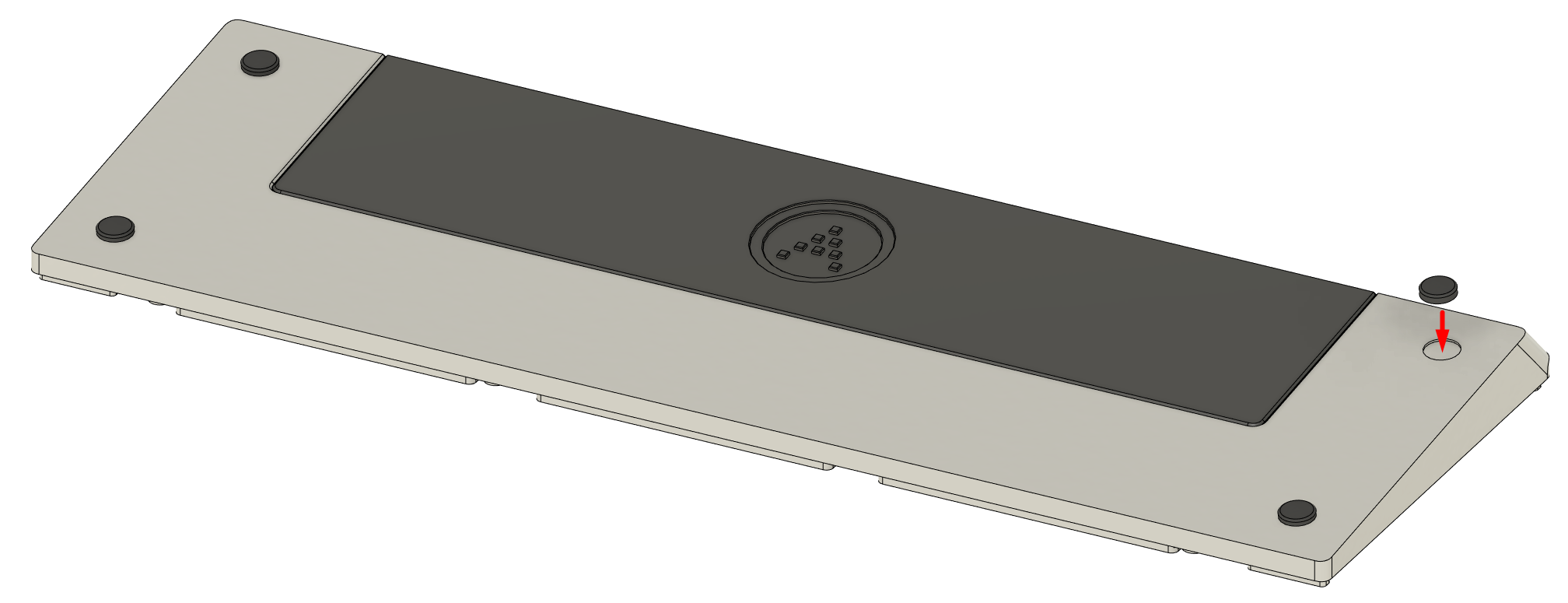

    Install the provided rubber feet into the inserts. Rubber feet

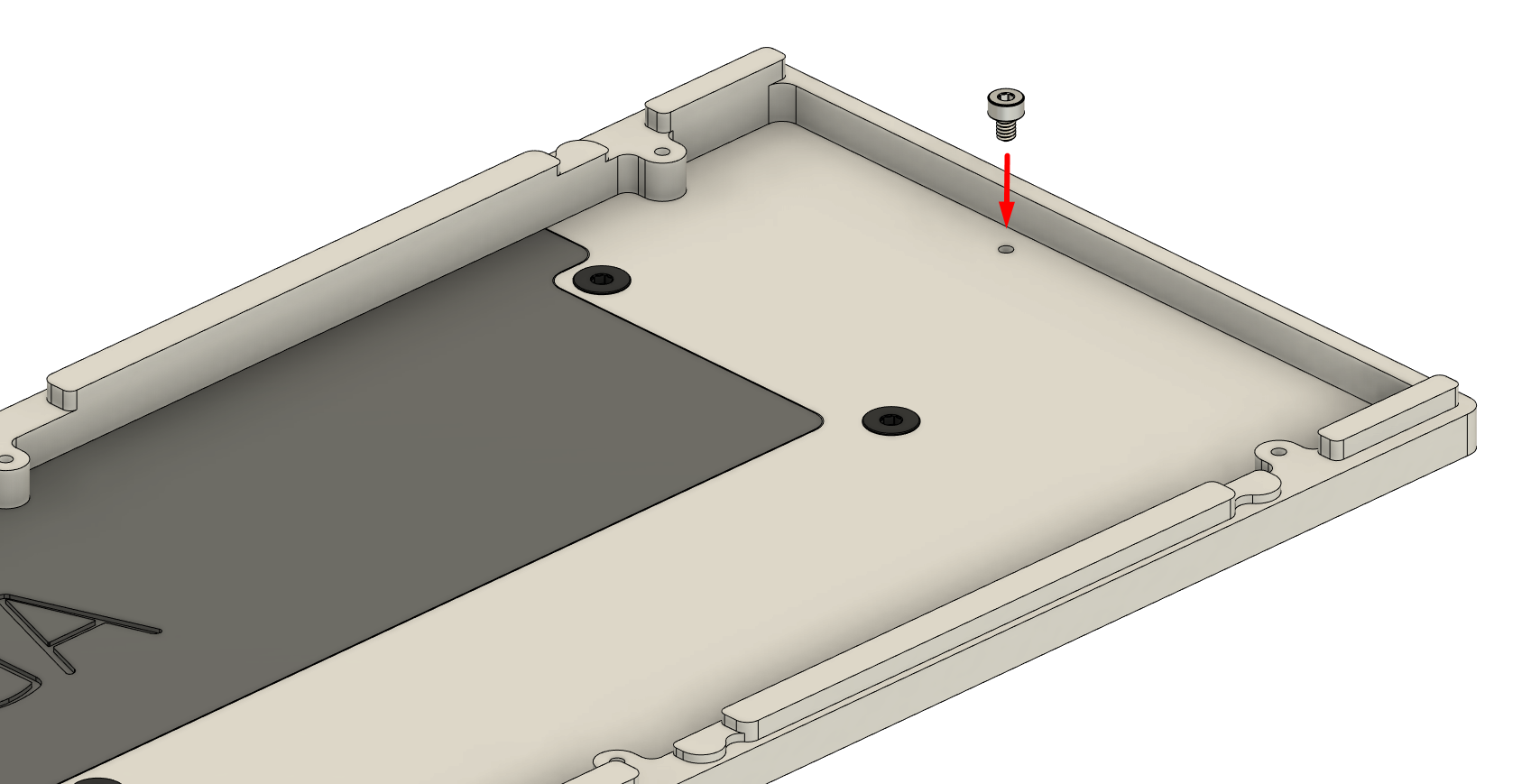

  15. If no screw was inserted into the PCB-conducting screw position out of the box, install this screw.
    Use one of the regular silver screws from the hotswap hardware kit for this task. Conductive screw


The case is now fully prepared for assembly.
